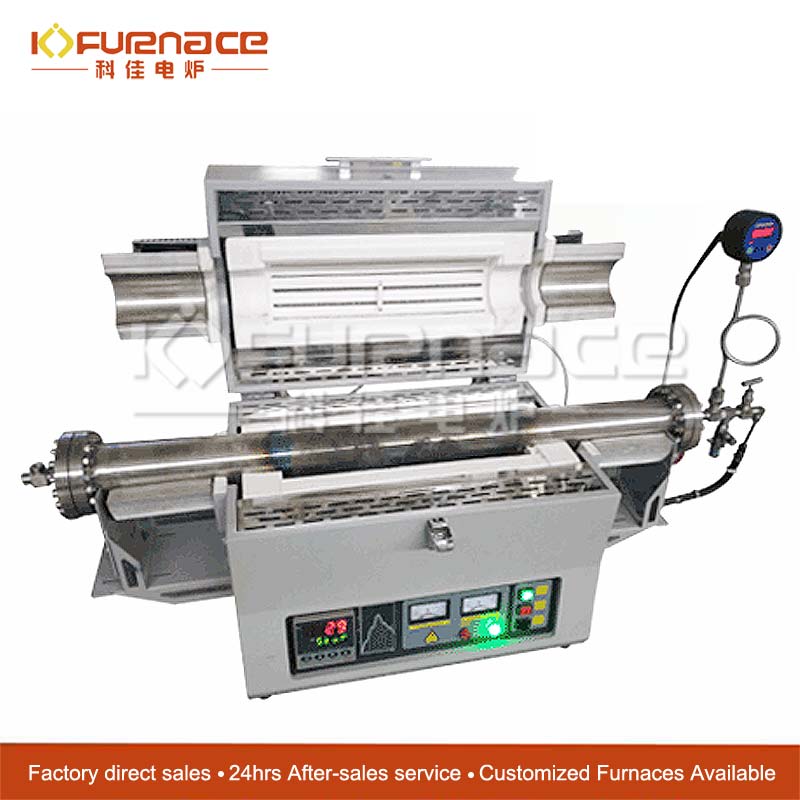

1200℃ high temperature and high pressure tube furnace
  • 1200℃ high temperature and high pressure tube furnace
  • 1200℃ high temperature and high pressure tube furnace
  • 1200℃ high temperature and high pressure tube furnace
  • 1200℃ high temperature and high pressure tube furnace
  • 1200℃ high temperature and high pressure tube furnace

    Model:KJ-T1200-L80L1

    Description:

    KJ-T1000-L80L1 1000℃ high temperature and high pressure tube furnace can heat treatment samples in high pressure oxygen environment or inert gas environment, the highest temperature can reach 1000℃, the furnace tube flange is equipped with pressure gauge

    Product model: KJ-T1000-L80L1
    Main purpose: KJ-T1000-L80L1 1000℃ high temperature and high pressure tube furnace can heat treat samples in high pressure oxygen environment or inert gas environment. Pressure gauge and high pressure relief valve are installed on the furnace tube flange, so when the pressure in the tube is When it is higher than the set value, the pressure relief valve will automatically open the exhaust to make the air pressure in the pipe reach the set value. Therefore, especially for the exploration and research of superconducting materials and dielectric materials, this high-temperature blast furnace is an excellent and inexpensive experimental tool.

    Product introduction:
    KJ-T1000-L80L1 1000℃ high temperature and high pressure tube furnace can heat treatment samples in high pressure oxygen environment or inert gas environment, the highest temperature can reach 1000℃, the furnace tube flange is equipped with pressure gauge and high pressure relief valve, Therefore, when the air pressure in the pipe is higher than the set value, the pressure relief valve will automatically open the exhaust to make the air pressure in the pipe reach the set value. Therefore, especially for the exploration and research of superconducting materials and dielectric materials, this high-temperature blast furnace is an excellent and inexpensive experimental tool.

    Main functions and features:

    1. The heating element adopts high temperature resistance wire, and the furnace insulation material adopts polycrystalline fiber material, which has good insulation performance, durability, high tensile strength, no ball, high purity, and energy saving effect is obviously better than domestic fiber materials.
    2. The whole furnace body adopts a double-layer inner liner structure with an air gap in the middle. Even if the furnace temperature reaches the highest temperature, the surface of the furnace body can still be touched safely without hot feeling.

    Technical parameter

    Product name : 1000℃ high temperature and high pressure tube furnace (CE certification)
    Model:  KJ-T1000-L80L1
    Heating zone length: 440mm (effective size)
    Constant temperature zone size: 200mm
    Furnace tube size: outer diameter 80mm* inner diameter 70mm*1000mm
    Maximum temperature : 1000℃
    Temperature control system: 30-segment PID microcomputer programmable automatic control
    Temperature control accuracy: ± 1℃ (with over-temperature and broken couple alarm function)
    Heating rate: 0~20 ℃ / min
    Heating element: High temperature alloy wire
    Rated voltage single phase: 220V 50Hz
    Maximum power: 4KW
    Gas can pass through inert gas such as nitrogen and argon
    Temperature measurement element: K-type thermocouple temperature measurement
    Shell structure: Double shell structure
    Furnace tube material: Nickel-based alloy, can withstand a temperature of 1200°C under normal pressure, and has very good ductility. When the wrong operation during the experiment causes the air pressure in the nickel-based alloy tube to exceed the maximum tolerable value (exceeding the long-term strength of the alloy tube), the alloy tube will undergo creep instead of brittle failure, and then a crack will slowly appear on the furnace tube. The gas is released. This means that even if the internal pressure of the furnace tube is too high in a high temperature environment, there will be no explosion, but a bag will be bulged first, and then cracks will be generated to vent the gas.
    Flange specification: Two CF-80 flanges are welded at both ends of the furnace tube, Sealed with oxygen-free copper sealing ring
    1/4NPS internal thread interface is installed on the flanges on both sides of the furnace tube.
    Pressure gauge specifications : Digital pressure gauge,
    Measuring range: 0-3MPA,
    Accuracy level: 0.5,
    Wire: M20 * 1.5, the high-pressure instrument is equipped with an alarm system module, which can be set up a high-pressure value and a low-pressure value manually. When the pressure in the pipe exceeds this range, the alarm light will flash and the alarm will sound.
    Pressure relief device can replace the spring to adjust the safety range
    A spring 3.4-24.1 Bar
    B spring 24.1-51.7 Bar
    C spring 51.7-103 Bar
    D spring 155-206 Bar
    E spring 206-275 Bar
    F spring 275-344 Bar
    G spring 340-413 Barr
    When the set pressure range is exceeded, it will automatically deflate to the set pressure value through the pressure relief valve

    Cooling system: Cooling fans are installed at both ends of the furnace body, and radiators are installed on both sides of the furnace tube to ensure that the temperature of the flange and the gas interface is not higher than 60 ℃ when the equipment is working.
    Temperature and furnace tube pressure 4Mpa at 600℃
    3Mpa at 800℃
    2.5Mpa at 900℃
    1.2Mpa at 1000℃
    Overall dimensions about 800mm*600mm*840mm (excluding furnace tube size)
    Random accessories: vacuum flange, high temperature gloves, crucible hook, thermocouple, furnace plug, O-ring, manual, etc.
    After-sales guarantee One year warranty (except for wearing parts)
