What Is the Temperature Curve of a Vacuum Brazing Furnace and How to Optimize It?

Time：2026-05-07

Introduction

The temperature curve of a vacuum brazing furnace is critical to brazing quality, consisting of heating, soaking, and cooling stages. This article concisely explains the parameters of each stage, optimization principles, modern process trends, and key practical points to help achieve reliable brazing results—backed by Kejia Furnace’s expertise in industrial thermal processing solutions.

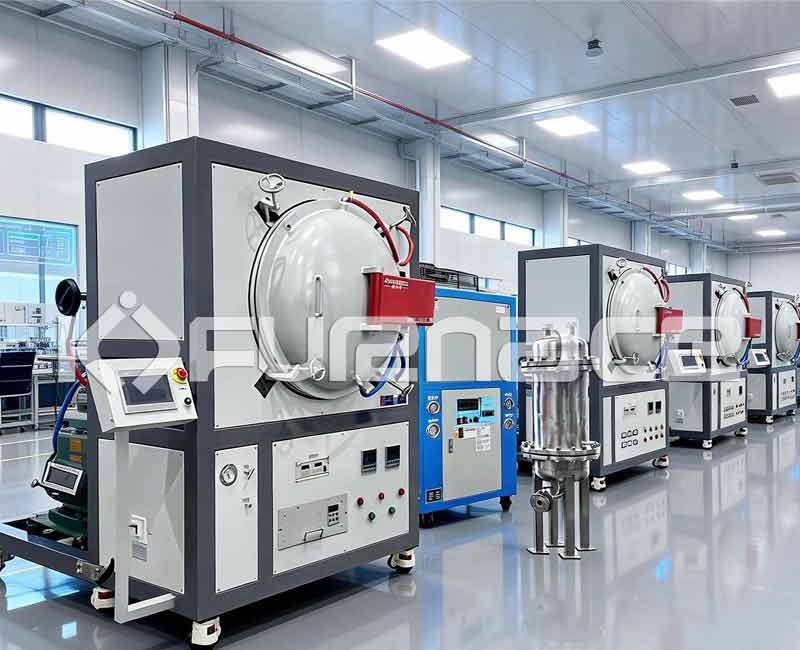

What Is a Vacuum Brazing Furnace Temperature Curve?

A vacuum brazing temperature curve is a programmed thermal profile that defines how temperature changes over time inside the furnace chamber during a complete brazing cycle. It consists of three critical stages: heating ramp, isothermal soak, and controlled cooling. Each phase must be tuned to filler metal properties, base material characteristics, part geometry, and loading configuration to avoid defects such as cracks, porosity, incomplete wetting, distortion, or grain growth—standards that Kejia Furnace adheres to in all our vacuum brazing equipment and process support.

1. Core Stages of the Vacuum Brazing Temperature Curve

1.1 Heating Ramp Stage
The heating phase raises parts from ambient to brazing temperature while managing thermal stress and outgassing.
- Heating rate: Standard 5–20 °C/min; heat‑sensitive materials (ceramic‑metal assemblies, complex thin‑wall parts) use 2–5 °C/min to prevent cracking from differential expansion.
- Temperature uniformity: ±10 °C across the workload; within 100 °C of brazing temperature, tolerance tightens to ±5 °C for uniform heating.
- Purpose: Remove moisture and volatiles; equalize temperature across large or dense loads; avoid local overheating.

1.2 Isothermal Soaking Stage
Soaking is where filler metal melts, flows, wets, and metallurgically bonds with base metals.
- Soak temperature: 10–50 °C above the filler metal liquidus; typical recommended range: 30–100 °C above liquidus to ensure full melting and flow. Example: Silver‑based filler with liquidus at 720 °C often uses 730–770 °C soak.
- Soak time: 5–15 min for small simple parts; 30–60 min for large, complex components like aero‑engine hot‑section parts.
- Temperature stability: ±5 °C maximum variation to ensure consistent joint formation across the workload.
- Upper limit: Must stay below the solidus of base metals to prevent melting, erosion, or distortion.

1.3 Controlled Cooling Stage
Cooling locks in joint microstructure and minimizes residual stress.
- Cooling rate: Customized by material and geometry; fast cooling boosts productivity but may introduce thermal shock; slow cooling reduces stress but extends cycle time.
- Cooling methods:
- Natural cooling: Slow, low stress
- High‑purity nitrogen backfill: Faster, stable, widely used
- Gradient or segmented cooling: For critical high‑value components
- Goal: Prevent cracking, distortion, and brittle phases; preserve mechanical properties of joints and base materials.

2. Optimization Principles for Vacuum Brazing Temperature Curves

2.1 Temperature Setting Rules
- General: Brazing temperature = 30–100 °C above filler liquidus
- Pure elemental fillers: 50–70 °C above melting point
- Multi‑component alloys: Use higher setpoint due to wider solidification range
- Absolute ceiling: Always below base metal melting point to avoid part damage

2.2 Soak Time Optimization
- Driven by thermal mass of parts and fixtures
- Balance: Sufficient wetting vs. minimized energy use and cycle time
- Validate with actual load tests for different batch sizes

2.3 Segmented Temperature Control Strategy
A “slow–medium–fast” ramp structure reduces defects and improves efficiency:
1. Slow ramp: Enhanced outgassing, reduced porosity
2. Medium ramp: Minimize inner‑outer temperature difference
3. Fast ramp: Improve throughput, limit base metal grain coarsening

3. Modern Process Trends in Vacuum Brazing Thermal Cycles

3.1 Elimination of Step‑Soak Heating
Traditional multi‑plateau curves are being replaced by smooth, low‑rate ramps (<15 °C/min) without intermediate holds. Benefits:
- Shorter overall cycle time
- Higher first‑pass yield
- Reduced vacuum fluctuations and equipment stress

3.2 Enhanced Temperature Uniformity
Advanced furnaces (like those designed and manufactured by Kejia Furnace) use:
- Zoned heating systems
- Multiple load thermocouples for real‑time adjustment
- Tight thermal uniformity to improve repeatability and weld quality

4. Key Takeaways for Practical Programming
No universal vacuum brazing temperature curve exists. Successful profiles rely on balancing four factors:
1. Filler metal type and melting range
2. Base material thermal and mechanical properties
3. Part size, thickness, and complexity
4. Actual furnace load quantity and arrangement
The ideal process combines theoretical calculation, FEA thermal simulation, and physical validation tests for your specific application. Modern systems are moving toward intelligent, adaptive closed‑loop control for autonomous optimization— a feature integrated into Kejia Furnace’s advanced vacuum brazing solutions.

Summary Table

Parameter	Standard Range	Notes
Heating rate	5–20 °C/min	2–5 °C/min for heat‑sensitive parts
Soak temperature	10–50 °C above filler liquidus	< base metal melting point
Soak time	5–60 min	Depends on part size and complexity
Temperature uniformity	±5–10 °C	Tighter near target brazing temp
Cooling mode	Natural / N2 backfill / Segmented	Balances stress and cycle time
