Carbon nanotube horizontal tube furnace is widely used in high temperature deposition experiments an
The carbon nanotube horizontal tube furnace is a key equipment for preparing carbon nanotubes. The following is an introduction from the aspects of equipment composition, technical characteristics, application scenarios and typical designs:
1. Equipment compositionThe carbon nanotube horizontal tube furnace is mainly composed of modules such as deposition temperature control system, deposition reaction chamber, vacuum control components and gas source control components. The core components include:
Furnace tube material: high-purity quartz tube or corundum tube is used as the inner furnace, supporting three-sided detachable sealing design to ensure high cleanliness and vacuum;
Heating element: U-shaped silicon molybdenum rod, silicon carbon rod or imported resistance wire is used, combined with lightweight fiber insulation material to achieve low energy consumption and efficient heat conduction;
Temperature control system: equipped with imported multi-stage intelligent program temperature controller, the temperature control accuracy reaches ±1.5℃, ensuring temperature stability and repeatability.

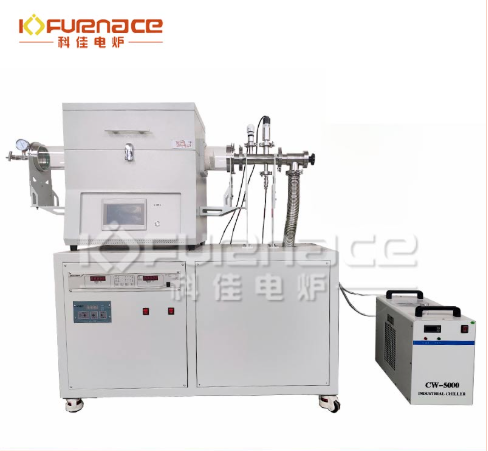

Quartz tube horizontal tube furnace Click on the picture to view details
2. Technical featuresProcess compatibility
Supports high, medium and low temperature CVD processes, suitable for carbon nanotube preparation, crystalline silicon substrate coating, nano zinc oxide structure growth and other scenarios;
Can be extended to metal material diffusion welding and heat treatment processes under vacuum/protective atmosphere.
Environmental control
Equipped with vacuum control components to achieve oxygen-free processing environment;
Gas source control components support precise adjustment of inert, reducing or oxidizing atmospheres.3. Application scenariosCarbon nanotube preparation:
In the development of carbon nanotubes, directional growth is achieved through chemical vapor deposition to meet the research and development needs of semiconductors, optoelectronic engineering and other fields;
Supports nanomaterial preparation processes such as crystalline silicon substrate coating and controllable growth of nano zinc oxide structures.

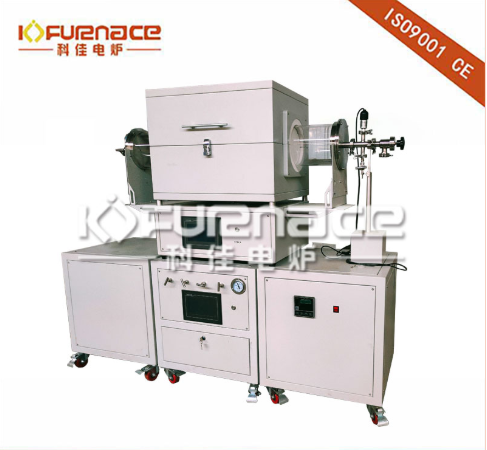

Horizontal carbon nanotube CVD furnace Click on the picture to view details
Material science:
Used for the synthesis, sintering and performance testing of new materials.
Chemical analysis:
Carry out ash analysis, thermogravimetric analysis, etc. of samples.
Environmental monitoring:
Used for thermal treatment of solid waste and analysis of pollutants.
Industrial production:
High-temperature treatment of products in industries such as ceramics, glass, and metals.
Research institutes and universities:
Suitable for laboratory experiments such as material sintering and heat treatment.4. Typical designStructural innovation
The horizontal layout is easy to operate and maintain. The furnace body can be integrated with the exhaust gas treatment system to purify the exhaust gas through the activated carbon adsorption plate;
Some models adopt the "one-to-two" design, which realizes independent operation of double stations through a single device to improve production efficiency.
Function expansion
Equipped with a water-cooled and air-cooled combined cooling system, using semiconductor refrigeration sheets and fans to achieve rapid cooling and extend equipment life;
Support customized design, such as adding catalyst distribution mechanisms, rotating deposition plates, etc., to meet specific process requirements.5. Carbon nanotube horizontal tube furnace manufacturer-Henan Honglu Machinery:Basic information: Henan Honglu Machinery Equipment Co., Ltd. is a national high-tech enterprise specializing in the research and development, production and technical services of high-temperature heat treatment equipment. The company has modern standard factory buildings and professional tooling, testing equipment and personnel.
Product features: Its carbon nanotube special tube furnace is developed with new technology and has the characteristics of high performance and high energy saving. The furnace tube is made of various materials, including corundum tube, quartz tube, high temperature resistant stainless steel, corrosion resistant titanium tube, etc., which can be customized according to customer needs. The furnace body temperature control is precise, the insulation effect is good, the temperature range is large, and the furnace temperature uniformity is high.
Application field: The horizontal tube furnace is not only suitable for the preparation of nanomaterials such as carbon nanotubes, but also widely used in materials science, chemical engineering, new energy and other fields.
In general, the carbon nanotube horizontal tube furnace has become an important tool for high temperature experiments and industrial production with its precise temperature control system, efficient heating design and comprehensive safety protection. Through intelligent operation and optimized insulation design, it not only improves the experimental efficiency, but also ensures the safety and reliability of operation.
