KJ-T1600 Touch Screen CVD Furnace
  • KJ-T1600 Touch Screen CVD Furnace
  • KJ-T1600 Touch Screen CVD Furnace
  • KJ-T1600 Touch Screen CVD Furnace
  • KJ-T1600 Touch Screen CVD Furnace
  • KJ-T1600 Touch Screen CVD Furnace

    Model:KJ-T1600 CVD

    Description:

    KJ-T1600 Touch Screen CVD is a tube furnace with 80mm diameter alumina tube and three channels Mass Flow Meters gas flowing system. It can mix 1-3 types of gases for CVD or diffusion.

    Brief Introduction:
    KJ-T1600 Touch Screen CVD is a tube furnace with 80mm diameter alumina tube and three channels Mass Flow Meters gas flowing system. It can mix 1-3 types of gases for CVD or diffusion.

    Technical Parameter:
    Model KJ-T1600 CVD with 3 MFC Gas channels

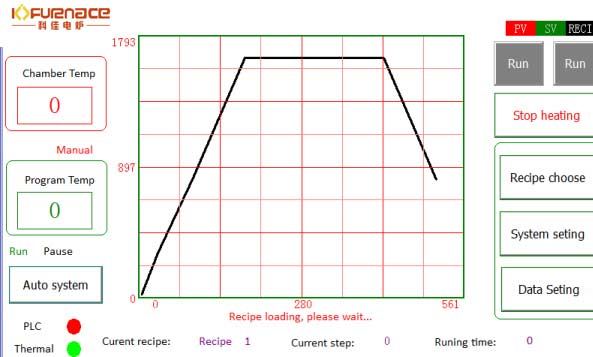

    Tube Furnace Display LCD Touch Screen
    Max. Temperature 1600℃ for short time
    Continuous Working Temp. ≤1500℃
    Heating Rate Suggestion: 0~10℃/min
    Temperature Zone 300mm
    Heating Element MoSi2 Heaters
    Thermocouple B Type
    Temperature Control Accuracy ±1℃
    Tube Size 80x1000mm (OD x L)
    Material:  Alumina Tube
    Tube Block Two fibrous ceramic blocks are included for blocking heat radiation from inside tube (Ceramic blocks must be fully inserted into the furnace chamber before heating).
    Temperature Control PID automatic control via SCR power control
    Program and Ramps 30 steps programmable
    Vacuum Flange Stainless Steel vacuum flange with valves

    Power 220V, 50 Hz, single phase at max.6KW

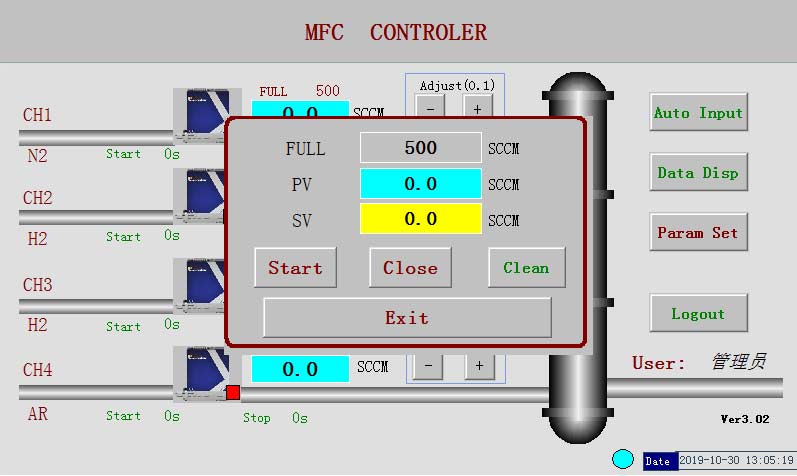

    Mass Flow Meters
    (LCD Touch Screen)
    Three precision mass flow meters :
    MFC 1: Gas flow range from 0~100 sccm
    MFC 2: Gas flow range from 0~200 sccm
    MFC 3: Gas flow range from 0~200 sccm
    (Gas flow range can be according to your requirement)
    One gas mixing tank is installed on bottom case with 3 stainless steel needle valves is installed on left side of bottom case to control 3 type gases mixing manually
