Large 1700°C Chamber Furnace
  • Large 1700°C Chamber Furnace
  • Large 1700°C Chamber Furnace
  • Large 1700°C Chamber Furnace
  • Large 1700°C Chamber Furnace
  • Large 1700°C Chamber Furnace

    Model:KJ-M1700-512L

    Description:

    Model KJ-M1700-512L Picture
    (For your reference) Furnace structure Double layer steel casing with dual cooling fan, temperature of furn

    Model KJ-M1700-512L

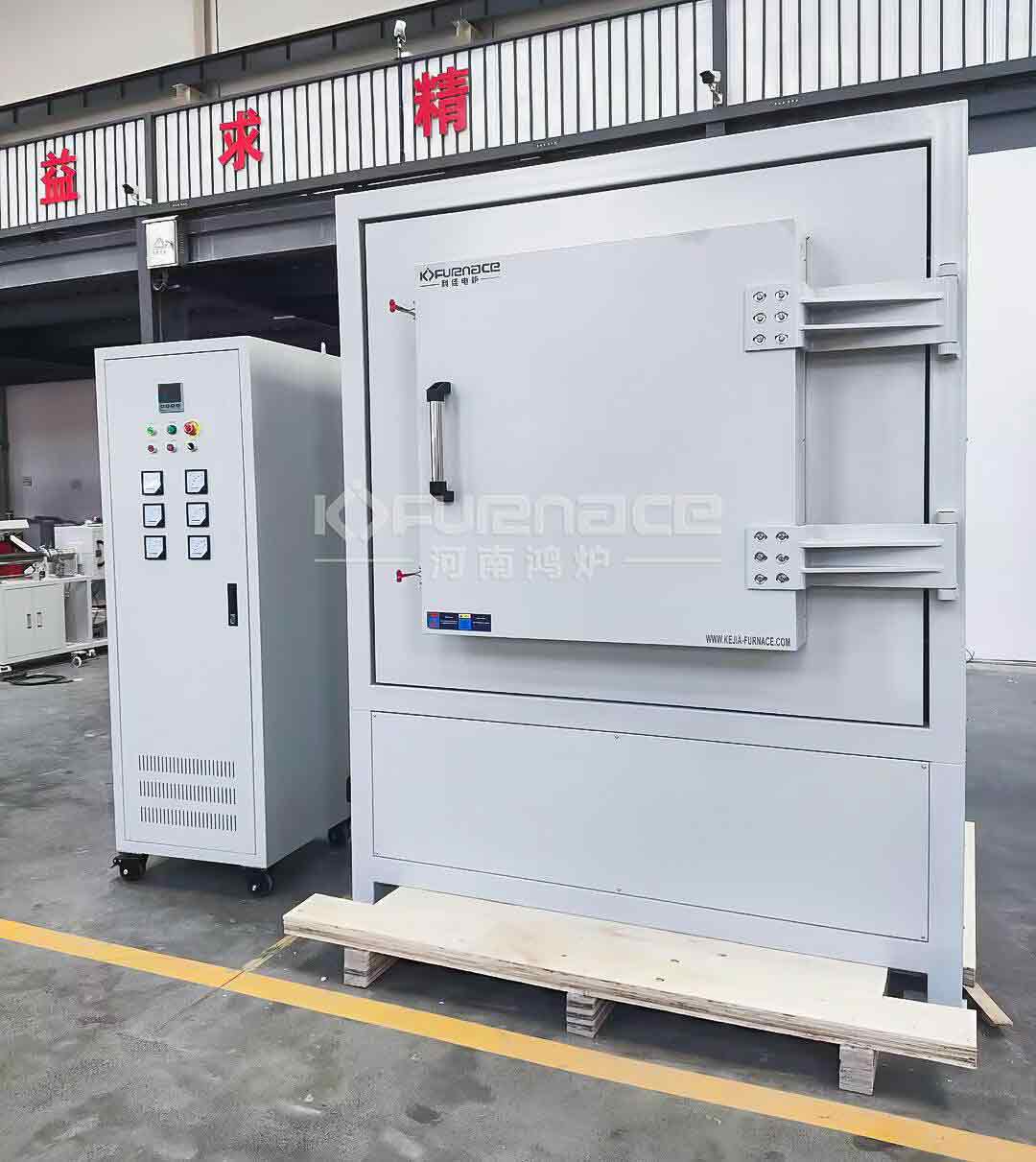

    Picture big box furnace
    (For your reference)
    Furnace structure Double layer steel casing with dual cooling fan, temperature of furnace shell below 60deg.C.
    Furnace liner Two layers of ceramic fiber insulation materials
    First layer: 1800deg.C ceramic fiber board
    Second layer: 1600deg.C ceramic fiber board
    Chamber dimension 800 X 800 X 800mm
    Max. temperature 1700℃ (For short time)
    Heating rate 0-10℃/min
    Temp. accuracy +/-1℃
    Thermocouple B-type thermocouple
    Temp. control PID automatic control via SCR (Silicon controlled rectifier)
    Power control with phase angle fired, current limiting resistor
    30 programmable segments for precise control
    Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection.
    Over temperature protection and alarm allows for operation without attendant
    Heating element MoSi2 heating rods
    Working voltage 380V, 50/60Hz, Three phase(Customized)
    Power 70 kW
    Production period 25 working days
    Warranty Period 1 year (Consumable uncovered.)

    Large 1700°C Chamber Furnace
