Large 1600C Muffle Furnace
  • Large 1600C Muffle Furnace
  • Large 1600C Muffle Furnace
  • Large 1600C Muffle Furnace
  • Large 1600C Muffle Furnace
  • Large 1600C Muffle Furnace

    Model:KJ-M1600-63L

    Description:

    Kejia 1600 Deg.C Muffle furnace-Double layer steel casing with dual cooling fan, temperature of furnace shell below 60deg.C.

    Kejia 1600 Deg.C Muffle furnace

    Model KJ-M1600-63L
    Picture muffle furnace
    Furnace structure Double layer steel casing with dual cooling fan, temperature of furnace shell below 60deg.C.
    Furnace liner Two layers of ceramic fiber insulation materials
    First layer: 1800deg.C ceramic fiber board
    Second layer: 1600deg.C ceramic fiber board
    Chamber dimension 500 X 250 X 500mm

    muffle furnace
    Working temperature 1600℃
    Heating rate 0-25℃/min (Suggestion: 0-10℃/min)
    Temp. accuracy +/-1℃
    Thermocouple B-type thermocouple
    Temp. control PID automatic control via SCR (Silicon controlled rectifier)
    Power control with phase angle fired, current limiting resistor
    30 programmable segments for precise control
    Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection.
    Over temperature protection and alarm allows for operation without attendant
    Heating element MoSi2 heating rods
    Working voltage 220V, 50/60Hz, Single phase(Customized)
    Power 20 kW
    Production period 15 working days
    Warranty Period 1 year (Consumable uncovered.)
    Other Can be custom base on your require

    Please check some related accessories as follows.


    muffle furnace  crucible tong
    1 pair
    muffle furnace High temperature refractory gloves
    1 pair
    muffle furnace Allen key
    1 piece

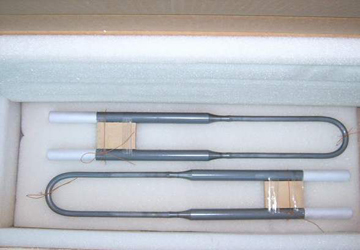

    muffle furnace 2 heating rods

    Furnace Picture:
    large muffle furnace

    Any requirements, please feel free to contact us via web@kejiafurnace.com or contact us online.
