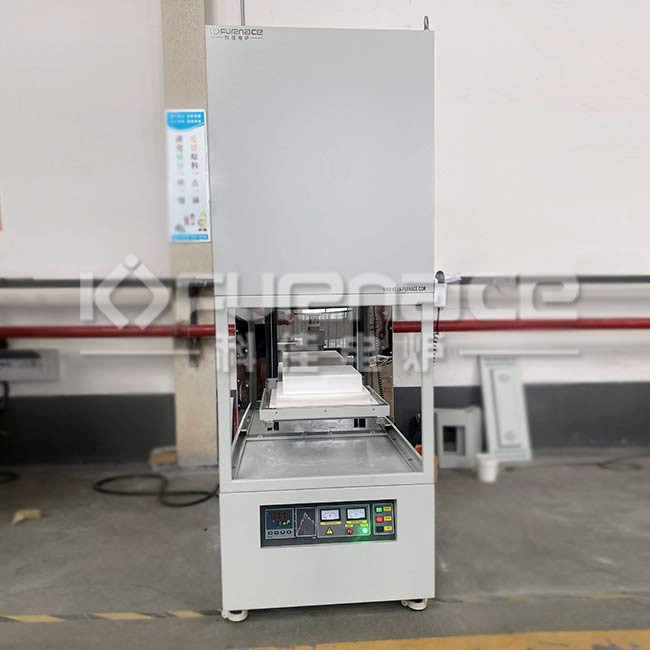

1600 Deg.C Bottom loading Muffle furnace
  • 1600 Deg.C Bottom loading Muffle furnace
  • 1600 Deg.C Bottom loading Muffle furnace
  • 1600 Deg.C Bottom loading Muffle furnace
  • 1600 Deg.C Bottom loading Muffle furnace
  • 1600 Deg.C Bottom loading Muffle furnace

    Model:KJ-BLM1600-36LZ

    Description:

    This 1700°C bell furnace is mainly used for melting high-purity glass and firing: electronic ceramics, bioceramics, magnetic materials and refractory metals, etc.

    Model KJ-BLM1600-36LZ

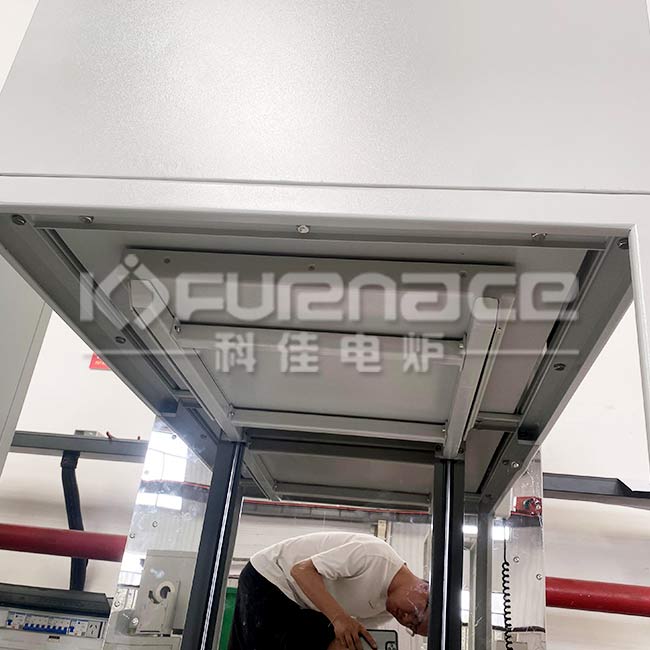

    Picture  bell type furnace

    Furnace structure Double layer steel casing with dual cooling fan, temperature of furnace shell below 60deg.C.
    Furnace liner Two layers of ceramic fiber insulation materials
    First layer: 1800deg.C ceramic fiber board
    Second layer: 1600deg.C ceramic fiber board
    Chamber dimension 300 X 300 X 400mm
    Working temp. ≤1600℃
    Heating rate 0-25℃/min (Suggestion: 0-10℃/min)
    Temp. accuracy +/-1℃
    Thermocouple B-type thermocouple
    Temp. control PID automatic control via SCR (Silicon controlled rectifier)
    Power control with phase angle fired, current limiting resistor
    30 programmable segments for precise control
    Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection.
    Over temperature protection and alarm allows for operation without attendant
    Heating element MoSi2 heating rods
    Size: 6/12x350(hot zone)x220(cold zone )x 50
    Two on each wall.
    Working voltage 380V, 60Hz, Two phase
    Power 12 kW
    Lifting tray speed of door up/down lift 80-100mm/second
    extension cable and up/down button handle
    Warranty Period 1 year (Consumable uncovered.)

    Please check some related accessories as follows:
      crucible tong
    1 pair
      User manual
    1
    High temperature refractory gloves
    1 pair
    Allen key
    1 piece
