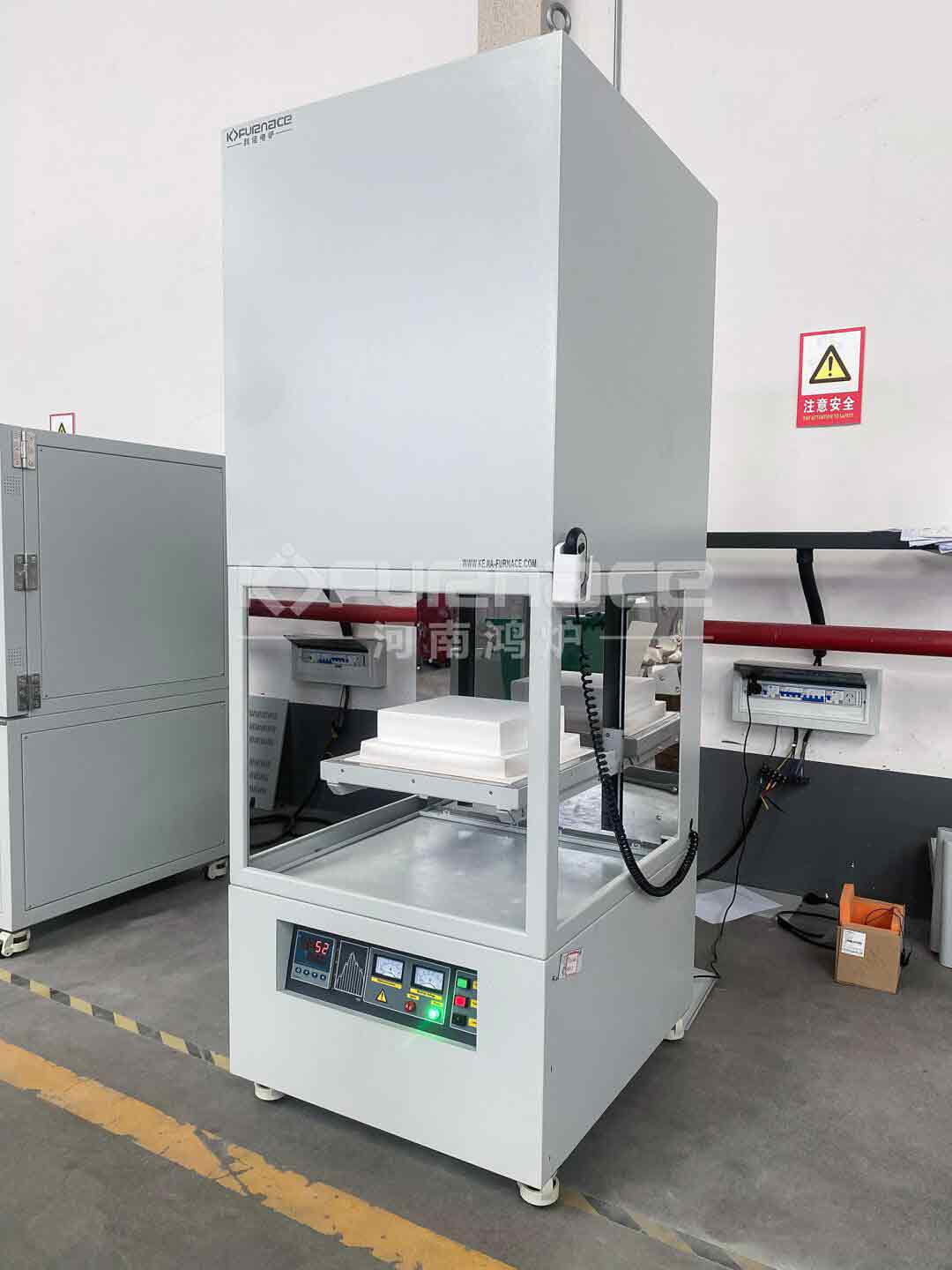

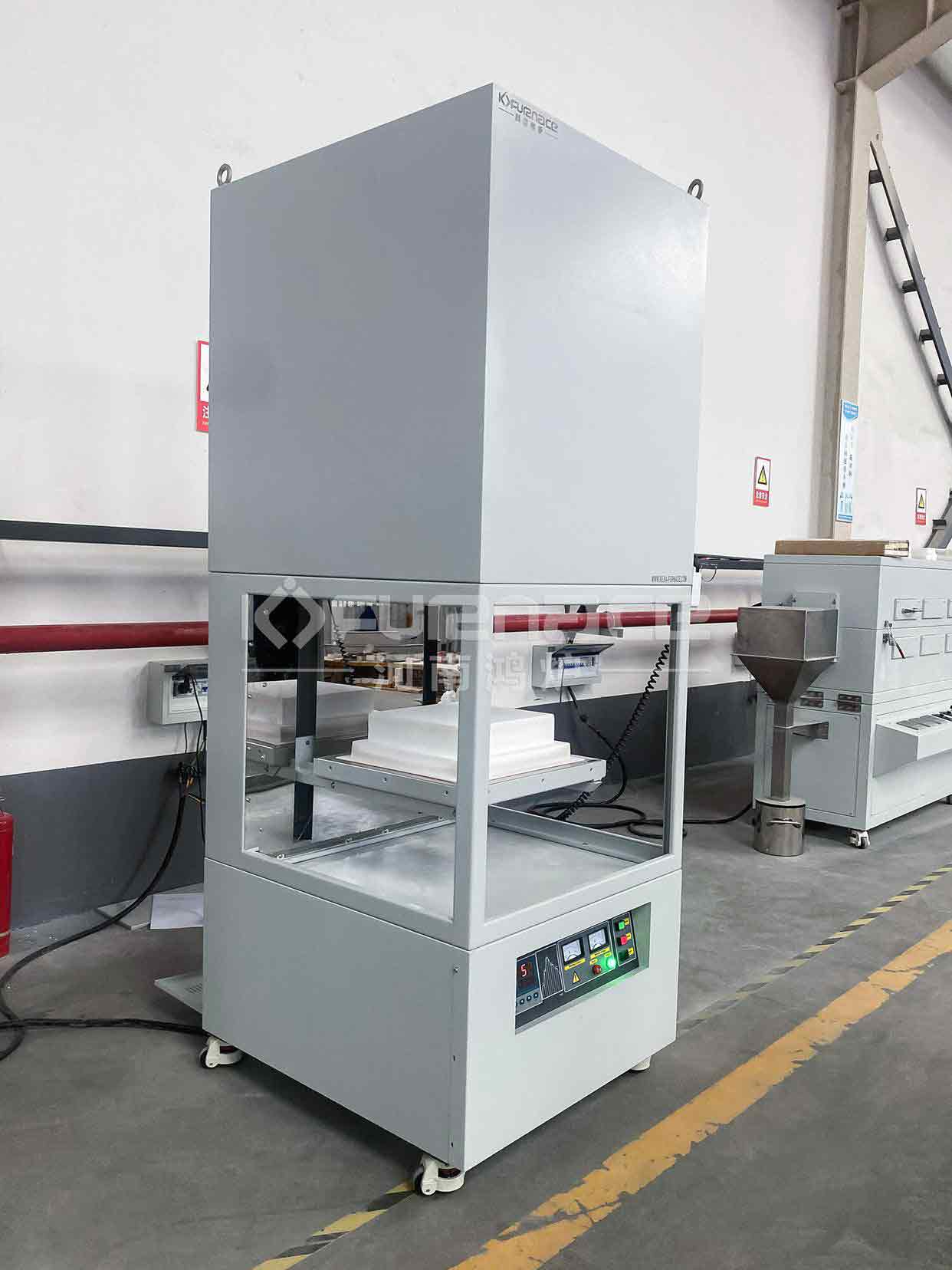

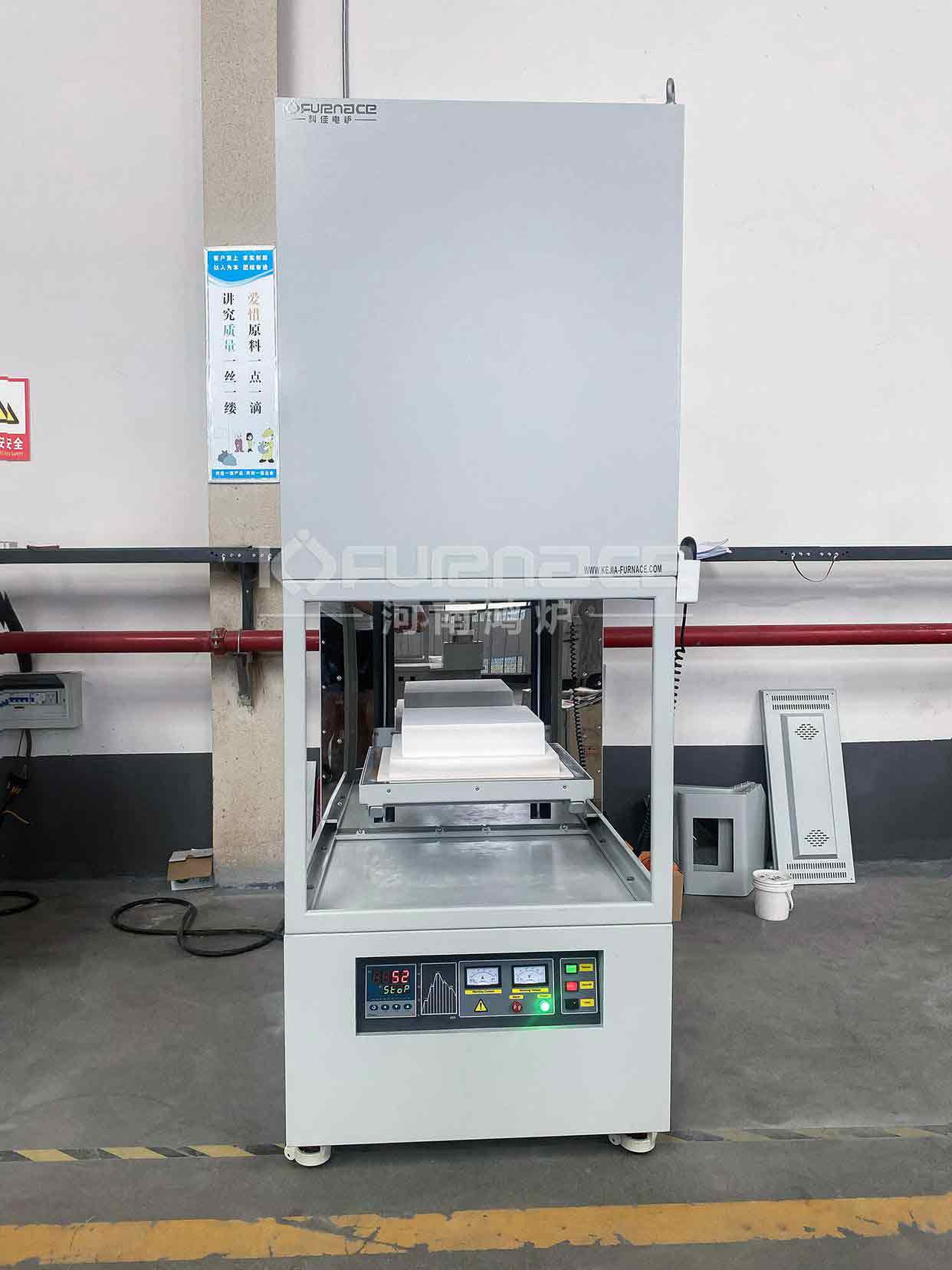

Bell-type Muffle Furnace
  • Bell-type Muffle Furnace
  • Bell-type Muffle Furnace
  • Bell-type Muffle Furnace
  • Bell-type Muffle Furnace
  • Bell-type Muffle Furnace

    Model:KJ-M-M

    Description:

    In this furnace, the heating element is laid on the four walls of the heating chamber to achieve a better temperature uniformity.

    Range of Application:
         It’s an ideal furnace which can be used for heat treatment of material in universities, laboratories and factories.

    Parameters:

    Model

    KJ-M1200-M

    KJ-M1400-M

    KJ-M1700-M

    Max. Temperature

    1200℃

    1400℃

    1700℃

    Working Temperature

    1100℃

    1300℃

    1600℃

    Heating Element

    Resistance Wire

    SiC heating rod

    MoSi2 heating rod

    Tray Movement

    Mechanical Lifting and Descending System

    Thermocouple

    K-type

    S-type

    B-type

    Heating Chamber Size

    150x150x150

    200x200x200

    200x200x300

    300x300x300

    300x300x400

    Insulation

    Alumina ceramic fiber

    Heating rate

    0-20℃/min

    Control Accuracy

    ±1℃

    Power Supply

    110-415V,50/60Hz
