1700C Tube Furnace with High Vacuum System
  • 1700C Tube Furnace with High Vacuum System
  • 1700C Tube Furnace with High Vacuum System
  • 1700C Tube Furnace with High Vacuum System
  • 1700C Tube Furnace with High Vacuum System
  • 1700C Tube Furnace with High Vacuum System

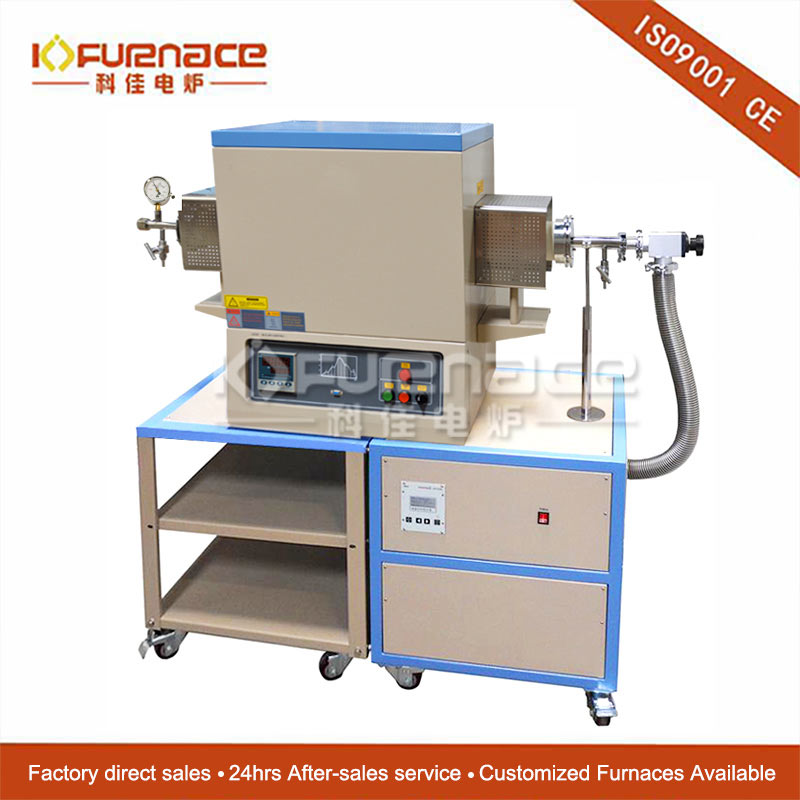

    KJ-1700X-HV furnace consists of a high-temperature alumina tube furnace and a high vacuum system.It can be heated up to1700°C by a different type of MoSi2 heating elements and achieve vacuum pressure up to 10^-4torr with a diaphragm pump.

    Specific Introduction:
        KJ-1700X-HV furnace consists of a high-temperature alumina tube furnace and a high vacuum system.
    It can be heated up to1700°C by a different type of MoSi2 heating elements and achieve vacuum pressure up to 10^-4torr with a diaphragm pump. It is widely used for material or chemical lab to sinter all types of new material samples under vacuum or other gas conditions. The temperature of KJ-1700X tube furnace is controlled by 30 segments programmable high precision SCR power controller with accuracy +/-1°C.
    Furnace Furnace structure Double-layer steel casing with air cooling. Two cooling fan inside to keep  case temperature < 55°C
    Tube Materials 99.8% High purity Al2O3 Ceramic
    Tube Size 82mm O.D Alumina tube  ---------- ID: 73mm; OD: 82 mm in diameter  x 1000 mm length
    Refractory lining 1750 grade fiber alumina cast
    Heating element 1700 grade MoSi2
    Working Temperature 1700°C (2912°F) Max.  <1hr
    1600°C continuously
    Normal Working Temperature 800 -1700°C (2732°F)
    Temperature Controller MET certified 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
    Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
    Over-temperature protection and alarm allow for operation without attendant(s).
    +/- 1 ºC temperature accuracy.
    RS485 Communications Port.

    • Advanced Temperature Control (Optional)
    • Temperature control software kit + 15" laptop package is available at the options bar.
    • You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB), and a software CD.
    Max. Heating / Cooling Rate 5°C / min above 1200°C and 10°C/min below 1200°C
    Heating Zone 457 mm (18")
    Constant Temperature Zone    150 mm (6")  (+/- 1°C at 1600°C  )
    Temperature Accuracy +/- 1°C
    Power Input Single Phase, 220V AC, 50/60 Hz
    Power Output Max. 5KW
    High Vacuum Station Structure Mobile cart size:  600 (L) x 600 (W) x 700(H), mm
    Max. Loading:       600 Lbs on top
    Molecular pump control Panel:   LCD digital
    Inside:   Pfeiffer vacuum pump
    Vacuum sensor is included
    Vacuum sensor Two vacuum gauges are installed in this system.
    1. Mechanical vacuum gauge
    2. High vacuum gauge (measuring range 10^-8 mbar ~ 10^3 mbar) is installed in the whole high vacuum system for monitoring the high vacuum status when operating the furnace with HV station support.
    Control Panel One button operation - the diaphragm pump and the turbomolecular pump will start after pressing the "start" button.
    System controlled spinning speed - the controller will control the speed of the turbine spinning up and down according to the vacuum level and leaking rate of the reaction chamber.
    Self-protection - the system will protect the pump from damage by overheating and over-current if the leaking rate of the reaction chamber is too high to achieve a high vacuum.
    LCD screen - double lines parameters checking interface make the working easier to be handled.
    Volume Flow Rate Nitrogen   N2     33 L/s
    Helium      He     39 L/s   (2340L/minute)
    Hydrogen H2   32 L/s
    Working Range From 1000 mbar to <1E-6 mbar (under Cold Condition only; Noted: Please don't use a high vacuum if the temperature is over 1500 °C)
    Ultimate Pressure <1E-8 mbar (without any leaking)
    Power Input 110V AC or 220V AC switchable, 50/60Hz
    Power consumption Duration/Max power: 100/110Watt
    Shipping Info Product Dimension Tube Furnace: 550 L x 450 W x 670 H  mm (21.7" L x 17.7" W x 26.4" H)
    Mobile bench with vacuum system: 600 x 600 x 700mm
    Net  Weight Furnace: 150 kg (330 lbs)
    Mobile bench with vacuum system: 50 lbs
    Shipping dimension Two Cases of 47" x 45" x 45"(1200L x 1150W x 1150Hmm)
    Shipping weight 450 Lb (175kg)
    Warranty One year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty, please contact us to order the replacement.)
    • CE Certified
    • All electric components ( >24V) are UL / MET / CSA certified
    • The furnace is ready to pass TUV(UL61010) or CSA certification at extra cost.
    • The tube furnaces with alumina tube are designed for using under vacuum and low pressure < 0.02 MPa / 0.2 Bar/ 3 PSI
    • Attention: A two stage pressure regulator must be installed on gas cylinder to limit the pressure to below 3 PSI for safe operation.
    • Never heat the furnace while the gas release valve is closed and a positive pressure condition exists within the furnace chamber. The pressure gauge must be used to closely monitor the chamber condition at all times during the heating process; please open the gas release valve immediately once the chamber pressure has reached over 3 PSI to prevent unforeseeable damages.
    • The flow rate for gases should be limited to < 200 SCCM ( or 200ml/min )
    • Vacuum limit definition for all alumina tube furnaces: * Vacuum pressures may only be safely used up to 1500°C
