|The main parameters||·Maximum temperature: 1100℃ (less than 30min)
·Working temperature: 1000℃
·Recommended heating rate: ≤ 10℃/min
·Heating area: 300 mm
·Maximum power: 1.2KW
·Voltage: AC220V, 50Hz

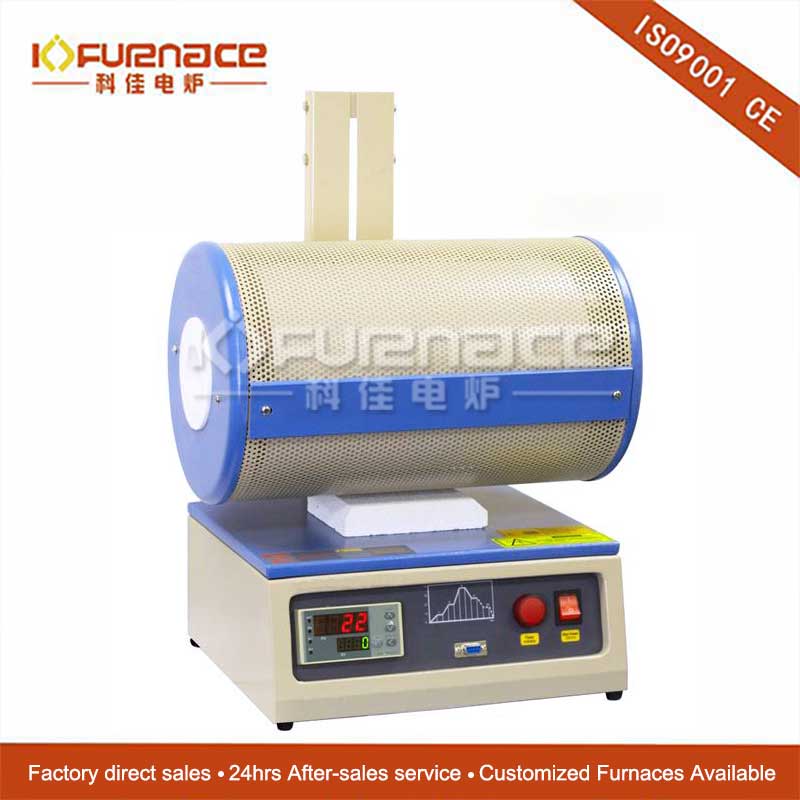

|Furnace structure||·The furnace is made of high-purity alumina fiber material to minimize energy loss
·Height adjustable stainless steel housing
·Three adjustable knobs on the back can flexibly change the vertical position of the furnace (from the control box platform to the lower end of the furnace)
·A variety of configurations are suitable for various heat treatment needs
|Furnace tube size and material||·Quartz tube Φ 50×600mm
·Include alumina pipe plug to prevent heat radiation from internal pipes. (The pipe plug must be completely inserted into the furnace cavity before heating)
.Quartz tube plug (purchased separately) can improve the vacuum and cleanliness of the furnace tube
|Temperature Control System||·Fully automatic PID self-tuning function
·30-segment programmable controller, convenient for customers to set the heating curve according to their requirements
·Temperature control instrument operation video
·With over-temperature and broken couple protection
·Temperature control accuracy: ±1 ℃
|Euro instrument||·European type temperature control instrument can be purchased, and the temperature control accuracy can be increased to ±0.1℃.
·For specific details, please call our sales company.
|Heating element||Mo-doped iron chromium aluminum alloy|
|Flange and optional accessories||·Two kinds of stainless steel flanges are available:
· 2" default flange, with 1/4" pagoda nozzle connector, 1/4" pipe through hole (for 1/4" outer diameter thermocouple plug-in) and KF25 vacuum connection
· 1" flange without thermocouple plug
·You can purchase a flapper valve to connect to the vacuum system
·In order to obtain faster and better vacuum, we recommend using stainless steel bellows
·You can consider ordering quick connection flanges, but additional charges are required
·Furnaces with digital display vacuum gauge and mechanical pump system can be ordered
|Seal flange and vacuum connection||·Stainless steel sealing flange (the air inlet at the left end is a 1/4" hose interface, and the air outlet at the right end is a KF-25 interface)
·Standard 1/4" pagoda mouth interface with needle valve
·In order to be able to use high-pressure gas, you can replace the standard pagoda nozzle pipe joint with a 1/4" hose joint
·Optional: In order to achieve high vacuum, KF25 adapter can be used to replace the standard pagoda nozzle connector
·Optional vacuum connection:
·The anti-corrosion digital vacuum indicator imported by our company has a measuring range of 3.8x10-5 to 1125 Torr. There is no need for coefficient conversion due to different gas types.
·KF25 stainless steel bellows
·KF25 fast loading and unloading clamp
|Vacuum system||Including double rotary vane mechanical pump (220V, 226 L/m) oil mist filter & KF-D25 stainless steel vacuum bellows and KF25 clamp
The vacuum degree can reach 1E-2 Torr (50 m-torr)
·Molecular pump: 1E-5 Torr
|Pressure measurement/detection||Mechanical pressure gauge, measuring pressure range is -0.1 to 0.15Mpa.
·The anti-corrosion digital vacuum indicator imported by our company (optional), its measuring range is 3.8x10-5 to 1125 Torr. No need for coefficient conversion due to different gas types
|Dimensions||Dimensions: 260×380×400 mm (D x H x W)
Furnace size: 80X330
|Certification||·All electrical components (>24V) have passed UL/MET/CSA/CE certification. If the customer pays the certification fee, the company guarantees that a single device has passed the German TUV certification or CAS certification.|
|Warranty||One year warranty and lifetime technical support.
Special tips: 1. Consumable parts such as heating elements, quartz tubes, sample crucibles, etc. are not included.
2. Damage caused by the use of corrosive gas and acid gas is not covered by the warranty.
|Related applications||This equipment can be designed as a swing furnace|
|Application note||·The pressure in the furnace tube should not be higher than 0.02MPa
·Because the internal pressure of the gas cylinder is relatively high, a pressure reducing valve must be installed on the gas cylinder when passing gas into the furnace tube. It is recommended to purchase a pressure reducing valve from our company. The range of our company’s pressure reducing valve is 0.01MPa-0.1MPa , It will be more precise and safe to use
·When the temperature of the furnace body is higher than 1000℃, the furnace tube must not be in a vacuum state, and the air pressure in the furnace tube must be equal to the atmospheric pressure and keep it at normal pressure.
·The gas flow into the furnace tube must be less than 200SCCM to avoid the impact of the cold atmosphere on the heated quartz tube
