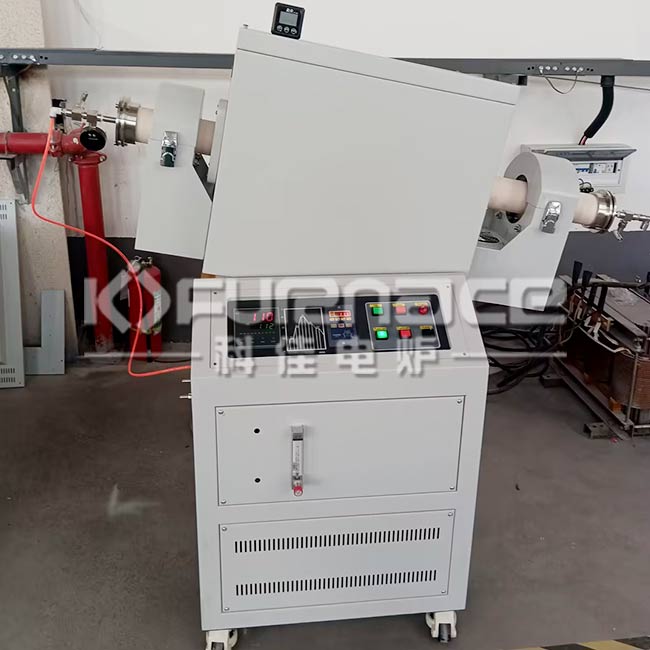

  • High temperature rotary tube furnace


    Continuous Temp:

    Chamber/Tube size:


    Product introduction:
        High temperature rotary tube furnace can be used for lithium ion battery anode and cathode materials (aluminum iron phosphate, lithium manganate, lithium cobalt oxide, ternary, graphite anode, etc.), rare earth materials, chemical catalytic materials, magnetic materials, powder metallurgy materials, non-ferrous materials Laboratory calcination and drying, high temperature reaction, heat treatment, carbonization of powder or granular materials of metal materials and kaolin non-metallic mineral materials. Users can also perform atmosphere treatment according to the material firing process.

    The main features are as follows:
    Product name High temperature rotary tube furnace
    model KJ-T1700-L80-X
    chamber size Furnace using alumina polycrystalline fiber
    tube size Corundum furnace tube
    Furnace tube size Corundum furnace tube, diameter is 80mm*1000mm
    heating zone 300mm
    working temperature 1600℃
    max.temperature 1700℃
    Heating element High quality silicon molybdenum rod
    Temperature control accuracy ±1℃
    Temperature Control System Adopt intelligent 30-segment PID programmable control
    The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions, and can compile 30 sections of heating and cooling programs;
    1. Adopt PID method to adjust temperature and control, can set 30 sections of heating and cooling program
    2. Temperature control accuracy ±1ºC
    3. With over-temperature protection and couple-break protection, the heating circuit of the electric furnace will be automatically cut off when it is over-temperature or broken (when the temperature of the electric furnace exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, and the main circuit will be disconnected. The ON light on the panel is off, the OFF light is on, the limited protection of the electric furnace).
    4. The instrument has the function of temperature self-tuning
    5. Using touch screen operation, data can be output and stored
    Flange joint Equipped with two stainless steel vacuum flanges with installed mechanical pressure gauges
    rotating structure Using the rotation method, the furnace tube can be rotated at 360°C, and the furnace body can be tilted
    Operating Voltage AC 220V  50Hz
    heating power 5KW
    temperature test element Double platinum-rhodium type B thermocouple
    Provide related accessories Crucible hook, high temperature gloves, thermocouple, furnace plug, instruction manual, warranty card, etc.
    After-sales service 12 months warranty, lifetime warranty (heating elements, furnace tubes and other random accessories are not included in the warranty scope)
