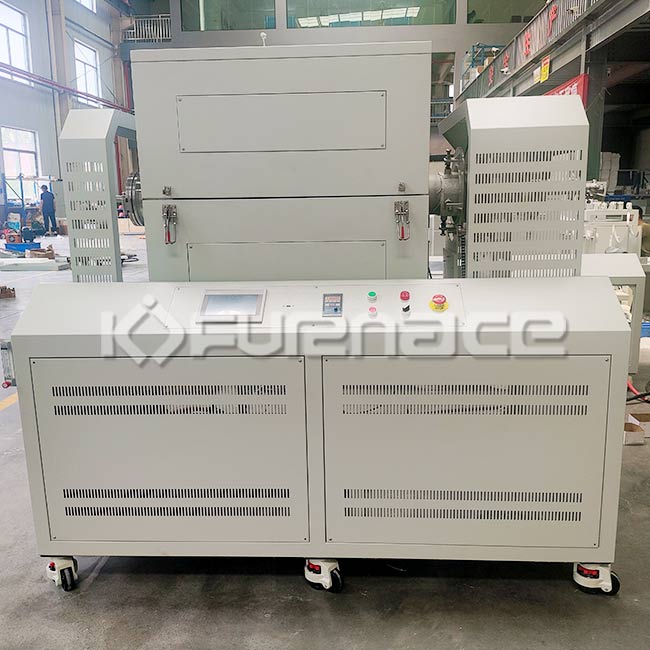

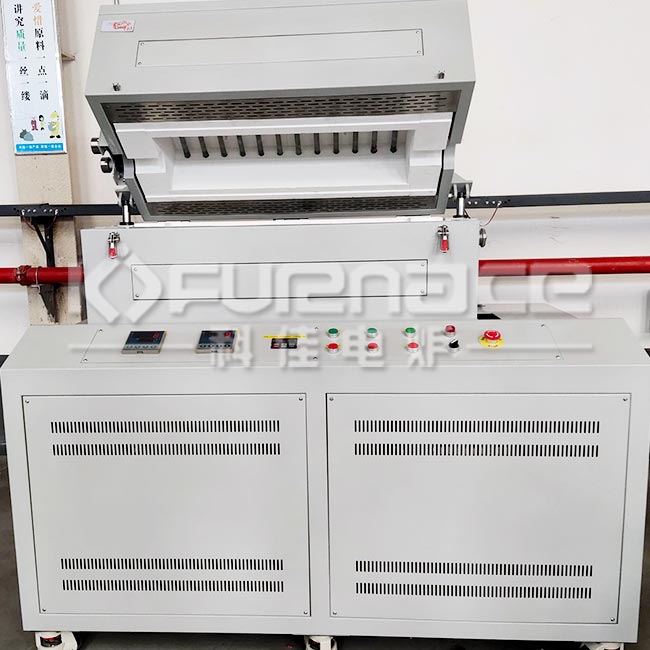

KJ-T1100-R200 Rotary Tilt Tube furnace
  • KJ-T1100-R200 Rotary Tilt Tube furnace
  • KJ-T1100-R200 Rotary Tilt Tube furnace
  • KJ-T1100-R200 Rotary Tilt Tube furnace
  • KJ-T1100-R200 Rotary Tilt Tube furnace
  • KJ-T1100-R200 Rotary Tilt Tube furnace

    Model:KJ-T1000-R200

    Description:

    It is a rotary tube furnace with alumina tubes and a 30-segment temperature controller. It is an excellent furnace for sample annealing, diffusion and sintering in various gas atmospheres up to 1000°C.

    Product introduction:
         It is a rotary tube furnace with alumina tubes and a 30-segment temperature controller. It is an excellent furnace for sample annealing, diffusion and sintering in various gas atmospheres up to 1000°C.


     Rotary tilt tube furnace


    features
    • Good temperature uniformity.

    • Over temperature protection and alarm.

    • PID automatic control through thyristor power control.

    • Multi zone/vertical/double tube/rotary tube furnace/RTP rapid annealing furnace, etc., can be customized on demand.

    Technical Parameters

    Model KJ-T1000-R200
    Furnace structure LED
    Continuous working Temperature ≤1000℃
    Heating Rate 0-20℃/min, Suggestion 0~10℃/min
    Temperature Zone Double
    Heating zone length 400+400mm, total 800mm
    Tube size Center diameter 200mm, both sides diameter 80mm
    Heating Element   SiC rods
    Temperature Control Accuracy   ±1℃
    Tube rotating Speed   0 - 10RPM variable
    Furnace tilt angle   0-15°
    Thermocouple   K type
    Max. Power 15KW(the exactly details according to design)
    Tube material 310S Stainless steel tube
    Chamber material Alumina Fiber
    Sealing flange -Left side flange with KF50 magnetic fluid sealing and outlet valves;
    -Right side flange with KF25 magnetic fluid sealing and gas inlet valves, mechanical pressure gauge.
    Limit vacuum degree: -0.1Mpa
    Vacuum pump Rotary Vane Vacuum Pump
    Include bellow and fitting for vacuum pump
    Flow rate:6L/S
    Working Voltage AC 380v, three- phase, 50 Hz(or according to your requirement)
    Temperature Controller 30 steps programmable PID digital controllers
    Warranty One year limited warranty (Consumable parts such as heating elements are not covered by the warranty)


    In addition, we can also customize the model with feed bin for customers.
    Feed Rotary Tube Furnace
    Feed Rotary Tube Furnace
