2.4MHz Ultrasonic Spray Pyrolysis Furnace 1200℃ Max. for Synthesis Nanoparticles
  • 2.4MHz Ultrasonic Spray Pyrolysis Furnace 1200℃ Max. for Synthesis Nanoparticles
  • 2.4MHz Ultrasonic Spray Pyrolysis Furnace 1200℃ Max. for Synthesis Nanoparticles
  • 2.4MHz Ultrasonic Spray Pyrolysis Furnace 1200℃ Max. for Synthesis Nanoparticles
  • 2.4MHz Ultrasonic Spray Pyrolysis Furnace 1200℃ Max. for Synthesis Nanoparticles
  • 2.4MHz Ultrasonic Spray Pyrolysis Furnace 1200℃ Max. for Synthesis Nanoparticles

    Model:KJ-1200X-PGEP

    Description:

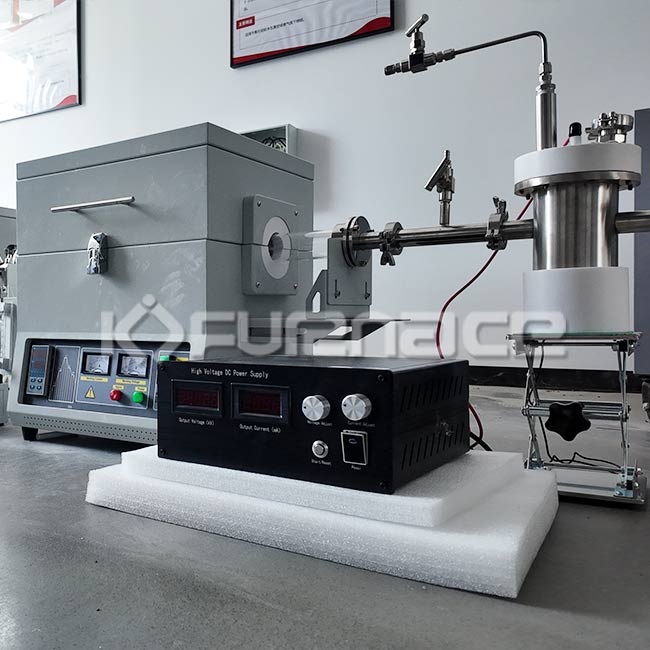

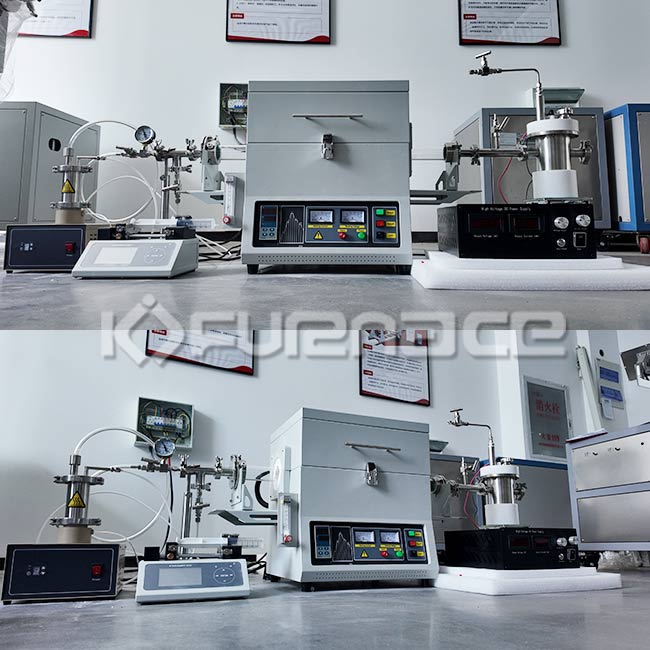

    KJ-1200X-PGEP is a versatile ultrasonic spray furnace system designed for the synthesis of core-shell nanoparticles. Three major subsystems (ultrasonic enhanced aerosol generator, tube furnace, and electrostatic precipitator) are employed on three process

    Specific Introduction:
        KJ-1200X-PGEP is a versatile ultrasonic spray furnace system designed for the synthesis of core-shell nanoparticles. Three major subsystems (ultrasonic enhanced aerosol generator, tube furnace, and electrostatic precipitator) are employed on three processes including aerosol generation, thermal decomposition, and nanoparticle collection. Such a system enables advanced synthetic method that provides control over particle size, morphology, and nano/microstructure.
    Parameters:
    System Features

    • Aerosol Generation: 2.4MHz Ultrasonic Enhanced Bubbler can "evaporate" target solution with literally no heat generated. An elongated Tee tube wrapped by a heating tape that connects inline with an ultrasonic bubbler can prevent condensing liquid from streaming into the tube furnace and promote the generation of aerosol.
    • Thermal Decomposition: Tube Furnace can be heated up to 1200C maximum. Bypassing the aerosol flux across the temperature and flow rate regulated firing zone, chemical and physical processes may proceed.
    • Nanopowder Collection: an electrostatic precipitator (1.2 L, up to 30 kV) can effectively collect nanoparticles from the carrier gas flow
    Tube Furnace -
    Thermal Decompositio
    Voltage & Power
    • Single Phase, 208V~240V AC, 50/60 Hz   (30A breaker required)
    • Max. 3 kW
    Working Temperature
    • 1100°C  continuous
    • 1200°C  Max. < 1 hours
    Max. Heating / Cooling Rate < 20 °C / min
    Heating Zone &
    Temperature Uniformity
    • 12" total heating zone length
    • 3" ( ± 1 °C )  heating area with the best thermal uniformity.
    Heating Elements
    • Fe-Cr-Al Alloy doped by Mo
    Temperature Controller

    • PID automatic control, 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
    • Built-in over-temperature alarm and protection allow for operation without the attendant.
    • ± 1 ºC temperature control at dwelling process
    • RS485 Communication Port.
    Processing Tube
    • The high-quality fused quartz tube is included for operation @ 1200C. (I.D.: 44mm x OD: 50 mm x 1200 mm length).
    Flanges & Fittings
    • Left flange: water-cooled flange with a needle valve and a mechanical pressure gauge.
    • Right flange: a flange with a KF25 port directly couples with the electrostatic precipitator.
    Aerosol Generation Ultrasonic Enhanced Generator


    • 110 VAC, 2.4 MHz Ultrasonic Generator
    • Fluoropolymer coated liquid container and Fluoropolymer sealing gaskets
    • In-situ optical sensor and valve for keeping the liquid level to the correct height and preventing damage to the nebulizing element.
    • Ultrasonic power programmable, 0~100%, 5% increment.
    • You may choose 1.7MHz ultrasonic spraying system at a lower cost
    Flow Meter
    • A 0-100 ml/min floating flow meter is included to control the carrier gas flow rate.
    • The mass flow meter is optional at extra cost.
    • Nanopowder Collection
    High Voltage Supply

    • AC 220V 50/60Hz, 50 W Max. power consumption
    • Digital Voltmeter and Current meter, 30 kV, 1 mA max.
    • Output voltage and current can be set on the front panel and read from the digital display
    • Constant current/Constant Voltage mode of operation
    • Built-in Arc protection circuit
    Electrostatic Precipitator

    • Up to 30 kV and 1 mA.
    • The use of KF25 enables the quick coupling to the furnace processing tube
    • Adjustable supports keep the collector leveled with the furnace tube
    Net Weight
    • 180Kg
    Shipping Dimension & Weight
    • 48"x40"x62"
    • 500 lbs
    Warranty
    • One year limited manufacturer warranty with lifetime support (consumable parts such as furnace liner, processing tubes, and O-rings are not covered by the warranty, please order replacements at related products page).
    Compliance

    • CE Certified
    • NRTL or CSA certification (UL61010) is available upon request at extra cost.
    Application Notes


    • A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation.
    • Never heat the furnace while the gas valve is closed and a positive pressure condition exists within the furnace chamber. The pressure gauge must be used to closely monitor the chamber condition at all times during the heating.
    • Wrapping Aluminum foil to achieve better thermal conductivity.
