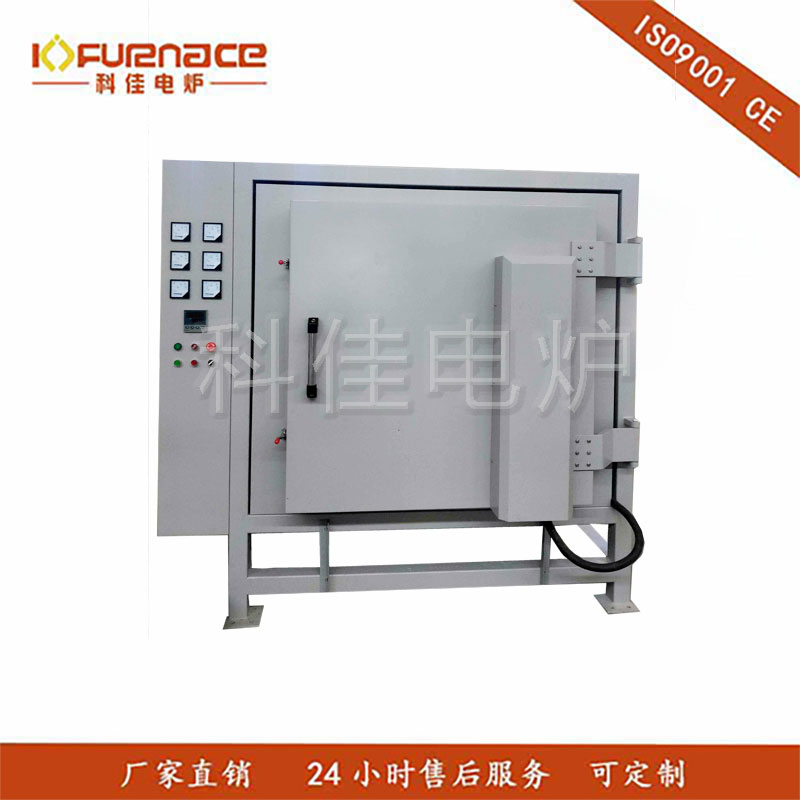

64L Muffle Furnace
  • 64L Muffle Furnace
  • 64L Muffle Furnace
  • 64L Muffle Furnace
  • 64L Muffle Furnace
  • 64L Muffle Furnace

    Model:KJ-M1200

    Description:

    KJ-M1200 64L muffle furnace is mainly used for the high temperature sintering and annealing of materials.

    Brief Introduction:
    KeJia KJ-M1200 64L muffle furnace is mainly used for the high temperature sintering and annealing of materials.

    The main features are as below:
    1. High uniform temperature.
    2. Easy to operate.
    3. Over temperature protection and alarm

    Technical Parameter:
    Chamber Structure Side Door
    Display LED
    Max. Temperature 1200℃ for short time
    Continuous working Temperature ≤1100℃
    Heating Rate Suggestion 0~10℃/min (Max. 20℃/min)
    Inside Chamber Size 400×400×400mm (64L)
    Heating Element Resistance Wire with Mo
    Thermocouple K Type
    Max. Power 16 KW
    Working Voltage AC380V three phases, 50 Hz (or according to your requirement)
    Temperature Control PID automatic control via SCR power control
    Heating Curves 30 steps programmable
    Chamber Material Alumina Fiber
    Warranty One year limited warranty (Consumable parts such as heating elements are not covered by the warranty)
    Standard Accessories Crucible tong x 1 pair
    Protective glove x 1 pair



    box muffle furnace

    box muffle furnace
