Product introduction:

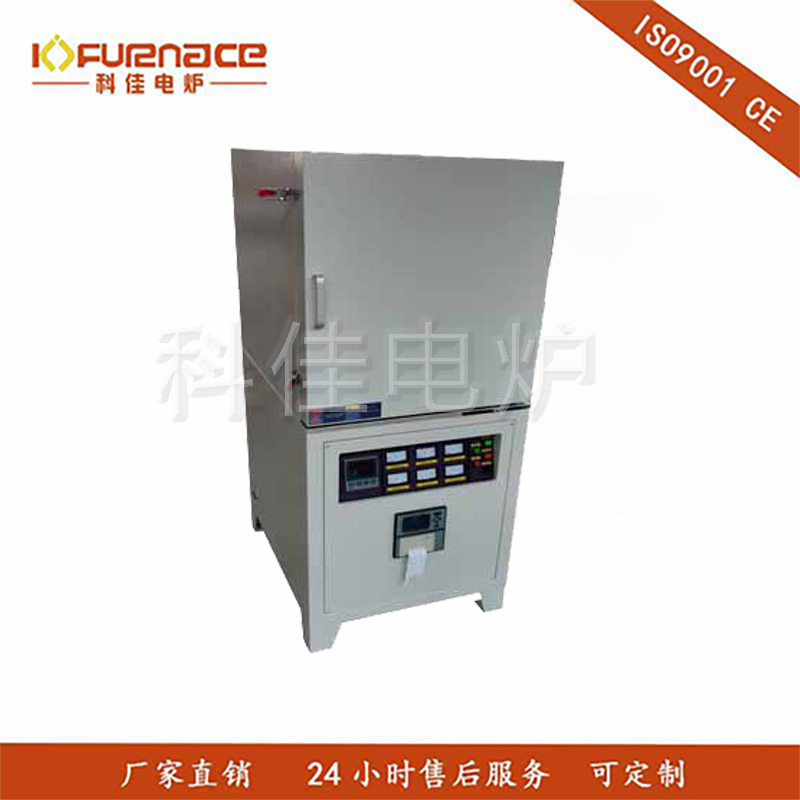

The small vertical medium temperature resistance furnace used in the laboratory uses the high temperature molybdenum containing resistance wire as the heating element and adopts the four-sided heating mode to ensure the heating uniformity of the furnace. The thermal insulation material adopts the alumina fiber material with good thermal insulation. It is equipped with a printing integrated paperless recorder, which has the functions of setting procedures, storing and printing the temperature control curve. The temperature control system adopts the artificial intelligence regulation technology, It has the functions of PID adjustment and self-tuning, and can program 30 sections of temperature rise and fall, and has the functions of over temperature, break couple, over-current protection, etc.
Product features:
1. Appearance design
The electric furnace adopts the humanized design, beautiful and easy to operate, and the outer layer of paint adopts the high temperature baking technology of plastic spraying. With high temperature, oxidation, acid and alkali resistance, corrosion and oxidation resistance is better than painting process. The color shall be aging resistant, and the appearance color will not fade due to long use time.
2. Shell design
The shell of the electric furnace adopts double-layer forced air cooling structure, which makes the external temperature of the shell close to the room temperature at the highest temperature of the electric furnace and avoids the occurrence of accidental injury.
3. Furnace material
It adopts the advanced alumina fiber material in the world, with excellent heat preservation effect, light weight, high temperature resistance, no crystallization, no slag dropping, and no need to worry about the pollution of the products. The energy-saving effect is 60-80% of the old electric furnace.
4. Furnace design
The furnace body adopts the step type assembly structure, and the furnace door and the furnace door frame adopt the overall design, which effectively ensures that the furnace does not collapse. The close cooperation of the furnace door and the furnace door frame makes the heat energy not easy to lose and increases the service life of the furnace door part.
The small vertical medium temperature resistance furnace used in the laboratory uses the high temperature molybdenum containing resistance wire as the heating element and adopts the four-sided heating mode to ensure the heating uniformity of the furnace. The thermal insulation material adopts the alumina fiber material with good thermal insulation. It is equipped with a printing integrated paperless recorder, which has the functions of setting procedures, storing and printing the temperature control curve. The temperature control system adopts the artificial intelligence regulation technology, It has the functions of PID adjustment and self-tuning, and can program 30 sections of temperature rise and fall, and has the functions of over temperature, break couple, over-current protection, etc.
Product features:
1. Appearance design
The electric furnace adopts the humanized design, beautiful and easy to operate, and the outer layer of paint adopts the high temperature baking technology of plastic spraying. With high temperature, oxidation, acid and alkali resistance, corrosion and oxidation resistance is better than painting process. The color shall be aging resistant, and the appearance color will not fade due to long use time.
2. Shell design
The shell of the electric furnace adopts double-layer forced air cooling structure, which makes the external temperature of the shell close to the room temperature at the highest temperature of the electric furnace and avoids the occurrence of accidental injury.
3. Furnace material
It adopts the advanced alumina fiber material in the world, with excellent heat preservation effect, light weight, high temperature resistance, no crystallization, no slag dropping, and no need to worry about the pollution of the products. The energy-saving effect is 60-80% of the old electric furnace.
4. Furnace design
The furnace body adopts the step type assembly structure, and the furnace door and the furnace door frame adopt the overall design, which effectively ensures that the furnace does not collapse. The close cooperation of the furnace door and the furnace door frame makes the heat energy not easy to lose and increases the service life of the furnace door part.
|
Model |
KJ-M600-42LZ |
|
Working Chamber Size |
350*500*400mm |
|
Working temperature |
300℃-600℃ |
|
Heating Element |
High temperature molybdenum resistance wire |
|
Power Supply |
380 V |
|
Max. Power |
12kW |
|
Accessories |
Door block, Crucible Tong, Gloves, Instruction manual |
|
Certificate |
CE, ISO. |
|
Option |
Crucible, Screen Control, Software |
|
Notes |
1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10℃/min. 2, This furnace is not air-tight. 3, It is normal that there will be tiny cracks on the wall of the heating chamber, they won’t affect the performance of the furnace, and can be repaired with alumina coating. |
|
Warranty |
One year warranty with life-time technical support. Special notes: 1, Consumables like heating element, quartz, crucible and so on are uncovered. 2, Man-made damage and damage caused by misuse are uncovered. |
