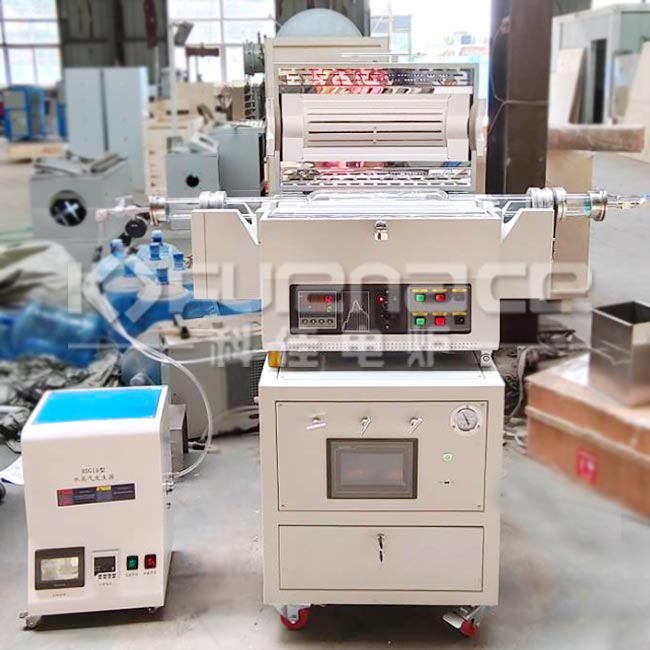

Tube furnace(with steam generator)
  • Tube furnace(with steam generator)
  • Tube furnace(with steam generator)
  • Tube furnace(with steam generator)
  • Tube furnace(with steam generator)
  • Tube furnace(with steam generator)

    Model:KJ-T1200-S100X

    Description:

     The furnace body of Kejia KJ-T1200-S100X tube furnace is equipped with a double-layer shell, equipped with a cold air system, which automatically cools down, so that the temperature of the furnace shell does not exceed 45 °C, and the furnace adopts high-

    Product description:
         The furnace body of Kejia KJ-T1200-S100X tube furnace is equipped with a double-layer shell, equipped with a cold air system, which automatically cools down, so that the temperature of the furnace shell does not exceed 45 °C, and the furnace adopts high-quality high-purity alumina formed by Japanese technology vacuum adsorption. The polycrystalline fiber curing furnace has good thermal insulation performance, high reflectivity and balanced temperature field. The furnace is the best choice for scientific research institutions and university laboratories.

    Technical parameter:
    Product name Tube furnace(with steam generator)
    Model KJ-T1200-S100X
    Furnace structure Double-layer shell structure, equipped with cold air system to automatically cool down the furnace shell temperature does not exceed 45 ℃
    chamber size The high-quality high-purity alumina polycrystalline fiber curing furnace formed by Japanese technology vacuum adsorption has good thermal insulation performance, high reflectivity and balanced temperature field.
    Max.temperature 1200℃
    Continuous working temperature ≤1100℃
    Heating rate Recommended ≤10℃/min, the fastest heating rate is 20℃/min
    Furnace tube material High Purity Quartz Tube
    Furnace tube size Reducer φ60-φ100-φ60mm
    The total length is 1200mm (the above dimensions are estimated dimensions and the final dimensions shall prevail)
    Welding lifting plate in the middle part of furnace tube
    Heating zone length 440mm
    Temperature Control System The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions
    1. Using PID mode to adjust temperature control, 30 sections of heating and cooling programs can be set
    2. Temperature control accuracy ±1ºC
    3, with over-temperature protection, broken couple protection
    4. The instrument has the function of temperature self-tuning
    Heating element Alloy resistance wire
    Temperature measuring element Type K thermocouple
    Working power 220V  50HZ
    rated power 4KW(subject to actual power)
    Additional features Can rotate 0-15 turns 360 degrees (speed adjustable), can be tilted 0-15° (adjustable tilt angle)
    Flowmeter Two-way precision mass flowmeter: digital display, automatic gas flow control.
    MFC1 Range: 0-10 SLM
    MFC2 Range: 0-10 SLM
    Air way: 2 way
    Flow Accuracy: 0.2%
    Inlet and Outlet Ports: 1/4" Ferrule
    Precision gas mixing tank: the gas is mixed and passed into the furnace tube
    Each gas path has an independent stainless steel needle valve control
    Adjust the gas flow by entering the flow value on the touch screen on the control panel
    steam generator Use environment:
    Ambient temperature: 0~50℃
    Relative humidity: 10%~90%RH, non-condensing
    Inlet water requirements: distilled water or deionized water (ultra pure water)
    Air intake requirements: no solid impurities, no corrosion to 304 stainless steel
    Working voltage: 220V 50HZ
    Working power: 1800W
    Steam flow: 1-10g/min adjustable
    Flow accuracy: ±3%
    Steam temperature: 110-200℃, ±1℃, adjustable
    Pipeline heating temperature: room temperature -200°C, ±1°C, adjustable
    Pipe material: all SUS304
    Working pressure: commonly used ≤ 0.1Mpa (design ≤ 0.2Mpa)
