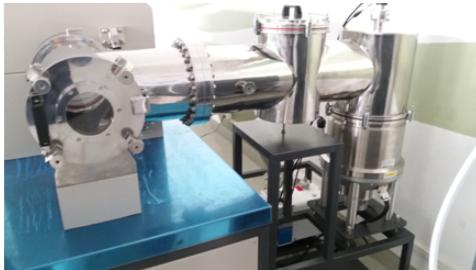

Experimental level sublimation instrument
  • Experimental level sublimation instrument
  • Experimental level sublimation instrument
  • Experimental level sublimation instrument
  • Experimental level sublimation instrument
  • Experimental level sublimation instrument

    Model:KJ-5-50

    Description:

    This organic small molecular purification equipment's (apophorometer)main usage is sublimate organic mixed material to purify(recrystal after evaporation).The main object is organic material with sublimation feature mixed material with low characteristic

    Introduction:
    This organic small molecular purification equipment's (apophorometer)main usage is sublimate organic mixed material to purify(recrystal after evaporation).The main object is organic material with sublimation feature mixed material with low characteristic(such as organic  acousto-opticproduct) or nanometer material.

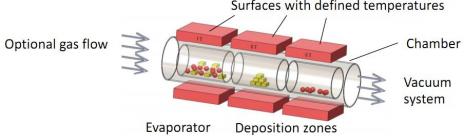

     The sublimation process of the universal quartz tube system:
    ★Separation of mixtures.
    ★Evaporation of each component - Control the heating temperature below the vaporization temperature of the material.
    ★Recrystallization - Deposition recrystallization along the temperature gradient.
    oled material purification

    Techncial Parameter:
    Heating element Resistance wire
    Heating zone num 5( control independently)
    Heating zone length 100+200+200+200+100 mm
    Tube outer diameter 50mm
    Sublimation temp. 800C adjustable
    Deposition temp 800C adjustable
    Temperature control way PID automatic and double  control by digital  industrial instrument and PLC
    Paperless record With USB port, can connect to PC to export the data.
    Structure Split design, with high-precision mass flow meter (optional) at the feed end, accurately controls gas flow, and enables expansion and adjustment of production processes.
    Filter Multi-level filter protection device are various level microporous metal mesh, nitrogen condensation embedded.
    Quartz chamber The cavity adopts double quartz tubes. The structure can better ensure that the vacuum chamber tubes are not contaminated and maintain a high vacuum degree. It is easy to clean. After the inner layer material tube is segmented and sublimated, the materials in each section can be easily distinguished, which can maximize the guarantee of product purity and yield. With sublimation tubes, they can be precisely connected to each other. One end of the inner tube is larger and the other is smaller, and they can be connected in pairs. The length of each section matches the temperature zones of the heating furnace.
    Vacuum system The vacuuming end adopts a direct connection between the main pipe and the molecular pump to ensure the high vacuum requirement during the experiment. Working vacuum: Under the condition that the temperature in the sublimation zone and the holding zone is approximately 300℃±10℃ and no sample is loaded, the vacuum degree within 50 minutes is ≤5 × 10-4Pa(with refrigerant added).
    There is a cold trap absorber between the turbomolecular pump and the main heating quartz tube. A dust filter is configured at the front end of the oil pump, and an oil mist filter is installed at the air outlet of the oil pump,
    Molecular pump speed: 90L/.
    Prepump speed: 16m3/h.
