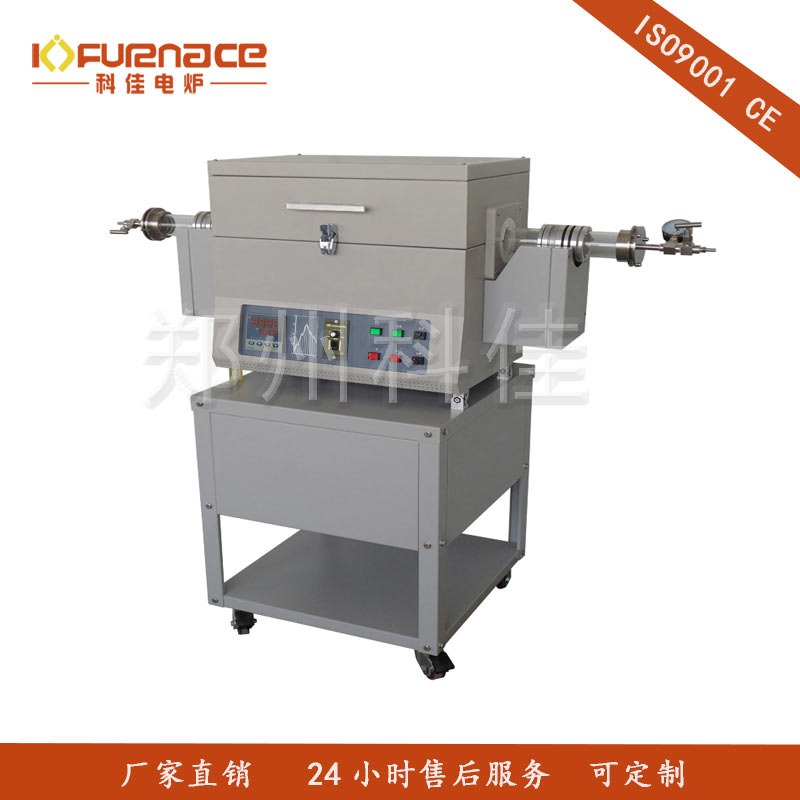

Rotatory Tilting Tube Furnace
  • Rotatory Tilting Tube Furnace
  • Rotatory Tilting Tube Furnace
  • Rotatory Tilting Tube Furnace
  • Rotatory Tilting Tube Furnace
  • Rotatory Tilting Tube Furnace

    Model:KJ-T1200-II

    Description:

    Besides heating, KJ-T1200-S25K1 is equipped with rotatory function and tilting function. The tube can rotate and the heating chamber can tilt. With a big-belly quartz tube and agitating plates in it, this furnace is a perfect tool for powder

    Specific Introduction:
        This Mini Rotatory Tilting Tube Furnace is mainly used for the uniform sintering of inorganic compound(Mineral compound) in researches like powder metallurgy, ceramics, refractory materials, batteries, new energy and so on.

    Parameters:

    Model KJ-T1200-II KJ-T1400-II KJ-T1600-II
    Top Temperature 1200℃ 1400℃ 1600℃
    Working Temperature 1100℃ 1300℃ 1500℃
    Tube Diameter Φ60/80/100/120
    Quartz
    Φ60/80
    Alumina ceramics
    Heating zone length 300/440mm
    Rotating rate 0-54rpm
    Tilting angle 0-20degree
    Insulation layers High-Purity Alumina Ceramic fiber
    Power Supply 110/220V 50/60HZ
    Heating Rate 0-20℃/min
    Control Accuracy ±1℃
    Temperature Sensor K-type Thermocouple S-type thermocouple B-type thermocouple
    Heating Element 0Cr27Al7Mo2 Resistance Wire SiC heating rods MoSi2 heating rods
    Sealing Flanges
    Structure Split Split and non-split Non-split
    Accessories Gloves, Crucibles, Tongs, Crucible hook.
    Optional Vacuum pumps, Gas-mixing system with mass flowmeters or float flowmeters.
