Introduction:

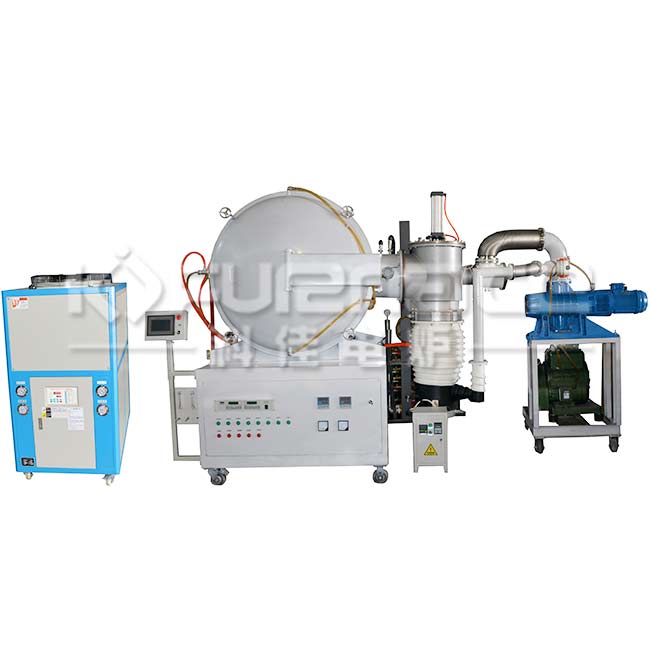

Stainless steel bright annealing furnace application scope: bright annealing of tool steel, die steel, ultra-high-strength steel, high-temperature alloy steel, stainless steel, magnetic materials, titanium alloys, non-ferrous metals and other materials. ...
Applications:
Bright annealing of tool steel, die steel, ultra-high strength steel, high temperature alloy steel, stainless steel, magnetic materials, titanium alloys, non-ferrous metals, etc.
Product features:
1. The rotary vane pump, diffusion pump and Roots pump set achieve high vacuum to ensure the processing quality of the workpiece.
2. The heating elements are evenly arranged to ensure the uniformity of the furnace temperature.
3. Metal molybdenum heating, stainless steel insulation, and high furnace cleanliness
4. The touch screen interface is friendly and practical. It can display and monitor the operating status of the equipment, call, edit and store the sintering process, and has dynamic display, historical data can be recorded and exported.
5. With safety interlock, fault diagnosis and abnormal alarm functions
Technical Parameters:
Stainless steel bright annealing furnace application scope: bright annealing of tool steel, die steel, ultra-high-strength steel, high-temperature alloy steel, stainless steel, magnetic materials, titanium alloys, non-ferrous metals and other materials. ...
Applications:
Bright annealing of tool steel, die steel, ultra-high strength steel, high temperature alloy steel, stainless steel, magnetic materials, titanium alloys, non-ferrous metals, etc.
Product features:
1. The rotary vane pump, diffusion pump and Roots pump set achieve high vacuum to ensure the processing quality of the workpiece.
2. The heating elements are evenly arranged to ensure the uniformity of the furnace temperature.
3. Metal molybdenum heating, stainless steel insulation, and high furnace cleanliness
4. The touch screen interface is friendly and practical. It can display and monitor the operating status of the equipment, call, edit and store the sintering process, and has dynamic display, historical data can be recorded and exported.
5. With safety interlock, fault diagnosis and abnormal alarm functions
Technical Parameters:
| Model | KJ-JS223 (optional) | KJ-JS334 (optional) | KJ-JS446 | KJ-JS557 (optional) | KJ-JS669 (optional) |
| Heating area (mm) | 200×200×300 | 300×300×400 | 400×400×600 | 500×500×700 | 600×600×900 |
| Heating power (Kw) | 25 | 50 | 75 | 95 | 150 |
| Maximum temperature (℃) | 1350 | 1350 | 1350 | 1350 | 1350 |
| Ultimate vacuum (Pa) | 10pa, 6.7×10-3pa | ||||
| Heating element | Metal molybdenum belt | ||||
| structure | Single indoor thermal horizontal structure | ||||
| Heating rate | 0-20℃/min | ||||
| More specifications can be customized according to requirements | |||||
