Position:Home > Products > Tube Furnace > Single-Zone Tube Furnace > 250-1200℃ Tube Furnace >

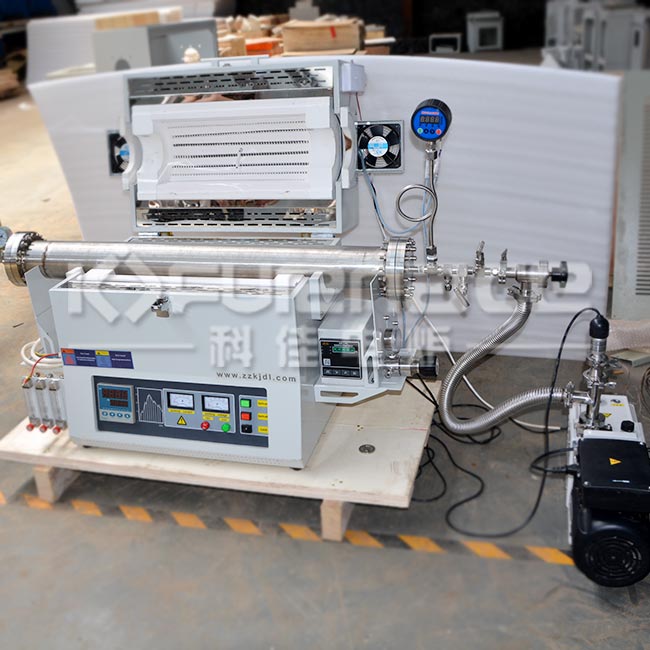

Stainless steel high temperature tube furnace
Stainless steel high temperature tube furnace

Stainless steel high temperature tube furnace

Model:KJ-T1200-H100

Description:

Structure:Double-layer shell structure, equipped with a cold air system to automatically cool the temperature of the furnace shell does not exceed 50 ℃.Furnace material: The high-quality and high-purity alumina polycrystalline fiber curing furnace made by Japanese technology vacuum adsorption molding has good insulation performance, high reflectivity and balanced temperature field.

Detailed
Technical parameter:
Model KJ-T1200-H100
structure Double-layer shell structure, equipped with a cold air system to automatically cool the temperature of the furnace shell does not exceed 50 ℃
Furnace material The high-quality and high-purity alumina polycrystalline fiber curing furnace made by Japanese technology vacuum adsorption molding has good insulation performance, high reflectivity and balanced temperature field.
Maximum temperature 1200℃
Continuous working temperature ≤1100℃
Heating rate recommended to be ≤10℃/min, the fastest heating rate is 20℃/min
Furnace tube material 310S stainless steel tube
Furnace tube size  Outer diameter: 102mm* wall thickness 10mm* length 1000mm
The instrument must be plugged before use to prevent heat radiation
Heating zone length 440mm
Flange Two CF-100 flanges are welded at both ends of the furnace tube,
Use oxygen-free copper sealing ring to seal, good sealing performance, flange
Cover water-cooled structure, flange with positive and negative mechanical pressure gauge, stop valve and pressure sensor, pressure relief valve, etc.
Pressure sensor Digital pressure gauge, measuring range: 0-1MPA, can set a high pressure value and low pressure value manually, when the pressure in the tube exceeds this range, the alarm light will flash
Pressure relief valve Automatic pressure relief valve, which can set the pressure value. When the set pressure range is exceeded, the pressure relief valve will automatically vent to the set pressure value.
Applicable pressure range 0.4MPa at 900℃
Temperature control system The temperature control system adopts artificial intelligence adjustment technology, has PID adjustment, self-tuning functions, and can program 30 sections of temperature rise and fall programs;
1. Using PID method to adjust the temperature control, 30 sections of temperature rise and fall programs can be set
2. Temperature control accuracy ±1ºC
3. With over-temperature protection and broken couple protection
4. The instrument has the function of temperature self-tuning
Heating element Molybdenum alloy resistance wire
Heating element Molybdenum alloy resistance wire
Temperature measuring element K-type thermocouple
Working power supply AC220V,50/60Hz
Rated power 5KW
Air inlet and outlet There are vacuum connection ports on the flange, air inlet and outlet
Flowmeter Three-way float flowmeter is installed on the top of the box
Vacuum pump DRV10 rotary vane pump, pumping speed 2L/S
Digital display vacuum gauge: resistance silicon measurement, display range atmospheric pressure--1.0*10-1Pa
KF25 flapper valve + KF25 bellows
Standard configuration 1 host, 1 pair of sealing flanges, 1 vacuum pump, 1 stainless steel pipe, 4 sealing rings, 2 furnace plugs, 1 crucible hook, 1 pair of high temperature gloves, 1 manual, 1 certificate and warranty card share


prev:Double Tube-Tube Furnace

next:none
