1200℃ Compact Split Tube Furnace

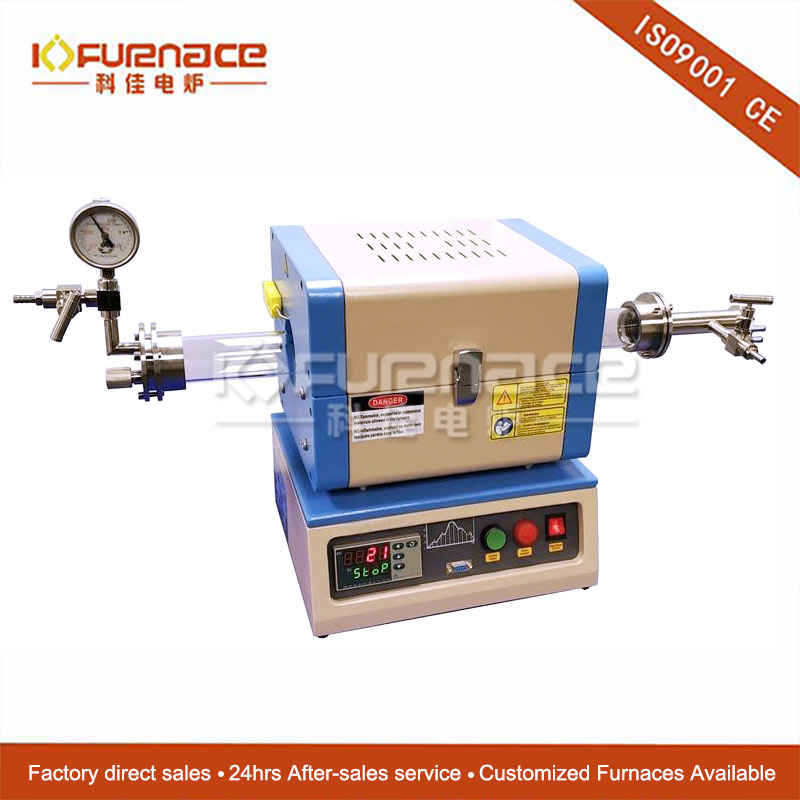

1200℃ Compact Split Tube Furnace

1200℃ Compact Split Tube Furnace

Model:KJ-1200X-S

Description:

KJ-1200X-S is a small tube furnace that has passed CE certification. Its maximum working temperature is 1200℃ and the rated power is 1200W. The furnace tube can be configured as a 1" or 2" high-purity quartz furnace tube. A pair of stainless steel flanges have been installed at both ends of the furnace tube (mechanical pressure gauges and stainless steel stop valves have been installed on the flanges).

Detailed
Specific Introduction:
    KJ-1200X-S is a small tube furnace that has passed CE certification. Its maximum working temperature is 1200℃ and the rated power is 1200W. The furnace tube can be configured as a 1" or 2" high-purity quartz furnace tube. A pair of stainless steel flanges have been installed at both ends of the furnace tube (mechanical pressure gauges and stainless steel stop valves have been installed on the flanges). This equipment allows samples to be sintered under vacuum and gas protection. The precise temperature control system includes 30 sections of heating and cooling curve settings, and its temperature control accuracy reaches +/- 1℃

Parameters:

Main feature
  • ·Using ABB electrical components
  • ·Double-layer shell structure with air cooling system
  • ·The furnace material adopts high-purity alumina fiber, which can minimize energy loss
  • ·Can be used as a module, DIY ALD CVD PVD evaporation furnace, rotary furnace, etc. (please contact us for details)
  • ·Using high-purity alumina as the furnace material, the surface of the furnace is coated with high temperature alumina coating imported from the United States, which can improve the heating efficiency and furnace life
Basic parameters
  • ·Maximum temperature: 1200℃ (≤30min) Working temperature: 1100℃
  • ·Recommended heating rate: ≤10℃/min
  • ·Heating area: 200 mm
  • ·Thermocouple: K-type thermocouple. Heating element: Mo-FeCr-Al alloy
  • ·Voltage: 220V, rated power: 1.2KW
Furnace structure
  • · Equipped with a pair of stainless steel sealing flanges, sealed with silicone sealing ring
  • ·Quartz tube caliber optional: Φ25 x 600mm or Φ50 x 600mm
  • ·Vacuum: 10-2torr (using mechanical pump)
  • ·A mechanical pressure gauge is installed with a measuring range of -0.1~0.15MP
  • ·Adopt PID method to adjust the temperature, 30 sections of temperature rise and fall programs can be set
  • ·With over-temperature and burnout protection
Product Size
  • · Dimensions when closed: 1000 L x 300 W x 400 H mm
  • · Dimensions when opening: 1000 L x 300 W x 550 H mm
  • ·Furnace size: 80X200
  • ·Net weight: 10kg
Certification
  • All electrical components (>24V) have passed UL/MET/CSA/CE certification. If the customer pays the certification fee, the company guarantees that a single device has passed the German TUV certification or CAS certification.
Warranty
  • One year warranty and lifetime technical support.
  • Special tips:
1. Consumable parts such as heating elements, quartz tubes, sample crucibles, etc. are not included.
2. Damage caused by the use of corrosive and acid gases is not covered by the warranty.

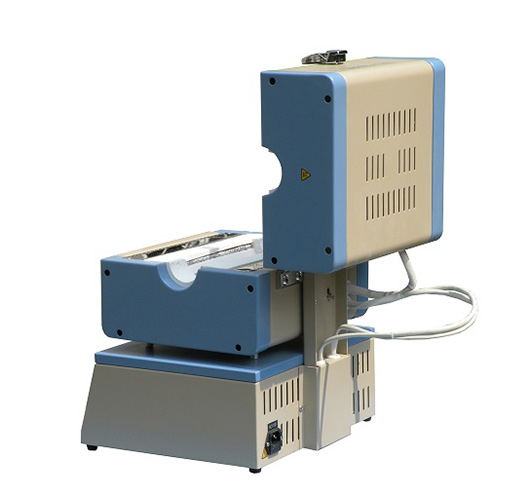

Compact Split Tube Furnace
