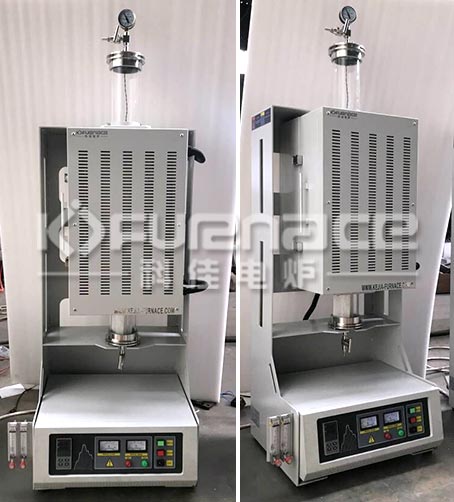

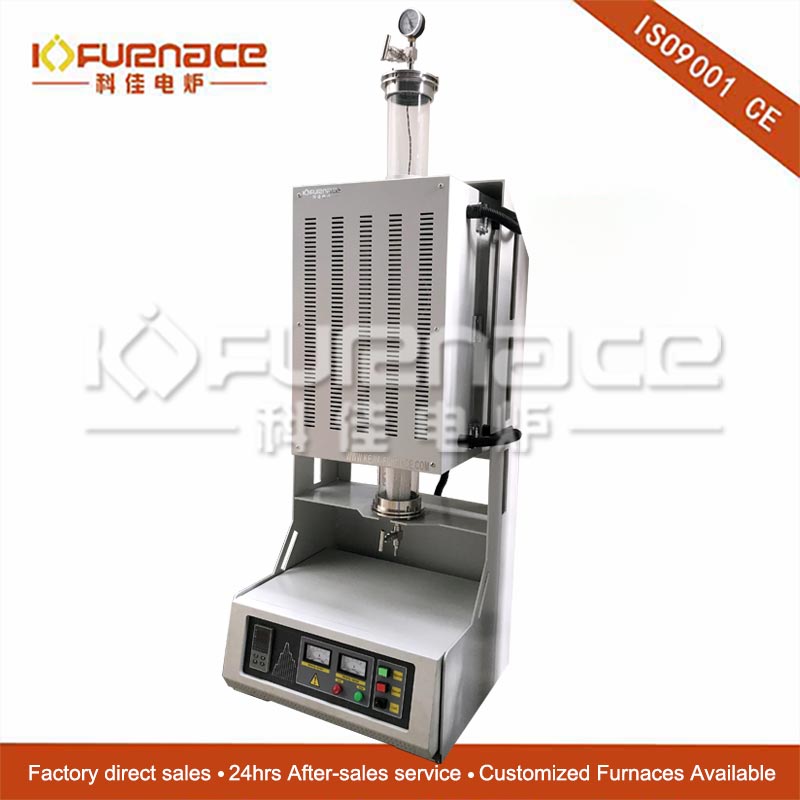

| Product photo |
 |
| Product name | Vertical tube furnace |
| Studio size | D120*L440mm |
| Quartz tube diameter | 100mm |
| Temperature zone | Single temperature zone |
| Insulation Materials | High-purity alumina fiber lining reduces heat loss and ensures high temperature stability. |
| Shell material | The box body is made of high-quality cold-rolled steel plate, the surface is electrostatic sprayed, the coating is hard and firm, with strong anti-rust ability, and the color is computer gray |
| Box door | Sideways |
| main controller |
Yudian temperature control meter PID 30-segment programming control Ultra high temperature alarm Burnout alarm |
| Temperature Sensor | K-type thermocouple |
| Maximum temperature | 1200°C |
| Heating method | Resistance wire heating |
| Heating rate | 0-15deg.C/min |
| Power requirements | 110V，60Hz，Simplex. |
| Gas supply | Install two float flow meters |
| power | 3000W |
