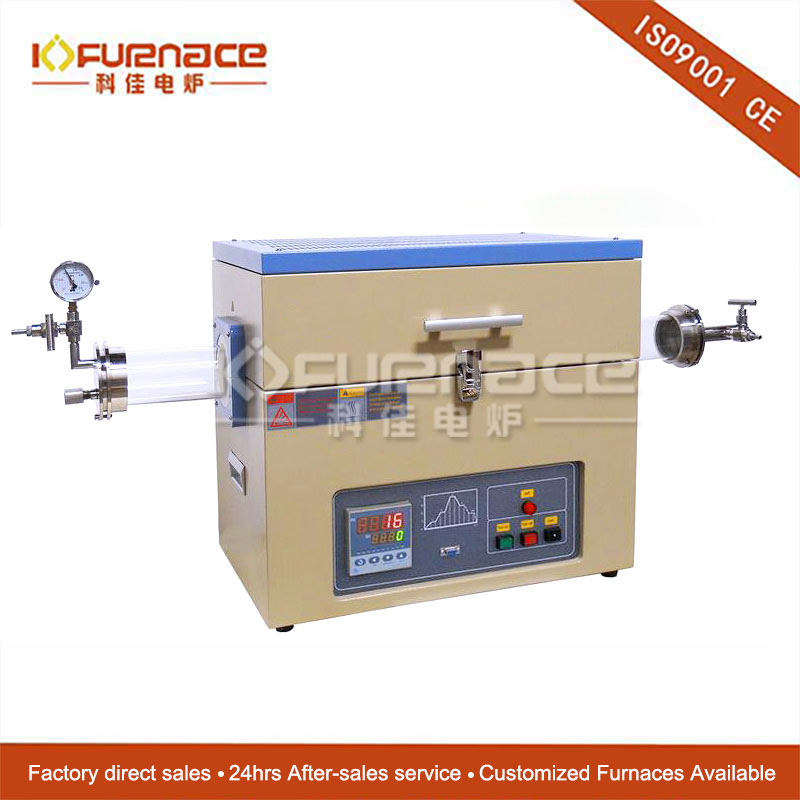

1200℃ Split Tube Furnace
  • 1200℃ Split Tube Furnace
  • 1200℃ Split Tube Furnace
  • 1200℃ Split Tube Furnace
  • 1200℃ Split Tube Furnace
  • 1200℃ Split Tube Furnace

    Model:KJ-1200X

    Description:

    KJ-1200X single-temperature zone open vacuum tube furnace adopts double-layer air-cooled structure, the surface temperature of the furnace body is ≤60℃, and the furnace chamber is formed by high-purity alumina microcrystalline fiber high-temperature vacuu

    Specific Introduction:
        KJ-1200X single-temperature zone open vacuum tube furnace adopts double-layer air-cooled structure, the surface temperature of the furnace body is ≤60℃, and the furnace chamber is formed by high-purity alumina microcrystalline fiber high-temperature vacuum adsorption. The surface of the inner furnace is coated with high-temperature alumina coating material imported from the United States at 1750℃ to improve the reflectivity and heating efficiency of the equipment and the cleanliness of the furnace, while prolonging the service life of the instrument. Imported heating resistance wire inlay to extend the service life of the furnace body. It is specially designed for universities, research institutes, laboratories, and industrial and mining enterprises to sinter and melt metals, non-metals and other compounds in a variety of controlled atmospheres and vacuum conditions. Special ideal equipment developed for analysis.
    Parameters:
    Main feature

    • ·Using ABB electrical components
    • ·In order to ensure safe use, the electric furnace is designed to open the door and cut off power
    • ·Double-layer shell structure with air cooling system
    • ·The furnace material adopts high-purity alumina fiber, which can minimize energy loss
    • ·Can be used as a module, DIY ALD CVD PVD evaporation furnace, rotary furnace, etc. (please call for details)
    • ·Using high-purity alumina as the furnace material, the surface of the furnace is coated with high temperature alumina coating imported from the United States, which can improve the heating efficiency and furnace life
    Product Model KJ-1200X-50           KJ-1200X-60               KJ-1200X-80              KJ-1200X-100
    Furnace tube specifications Outer diameter: 50 × length: 1000 mm
    outer diameter: 60 × length: 1000 mm
    outer diameter: 80 × length: 1000 mm
    outer diameter: 100 × length: 1000 mm
    Basic parameters ·Maximum temperature: 1200℃ (≤30min) Working temperature: 1100℃
    ·Recommended heating rate: ≤10℃/min
    ·Heating area: 400 mm
    ·Thermocouple: K-type thermocouple. Heating element: Mo-FeCr-Al alloy
    ·Voltage: 220V, rated power: 3KW
    Furnace structure & temperature control · Equipped with a pair of stainless steel sealing flanges, sealed with silicone sealing ring
    ·Quartz tube caliber optional: Φ50 x 1000mm or Φ60 x 1000mm or Φ80 x 1000mm or Φ100 x 1000mm
    ·Vacuum: 10-2torr (using mechanical pump)
    ·A mechanical pressure gauge is installed with a measuring range of -0.1~0.15MP
    ·Adopt PID method to adjust the temperature, 30 sections of temperature rise and fall programs can be set
    ·With over-temperature and burnout protection
    Vacuum ·Mechanical pump: 10^-2 torr
    ·Molecular pump: 10^-5 torr
    Product Size · Dimensions when closed: 640 L x 420 W x 550 H mm
    · Dimensions when opening: 640 L x 420 W x 780 H mm
    ·Furnace size: 120X440
    Weight Net weight: 40kg
    Certification All electrical components (>24V) have passed UL/MET/CSA/CE certification. If the customer pays the certification fee, the company guarantees that a single device has passed the German TUV certification or CAS certification.
    Warranty One year warranty and lifetime technical support.
    Special tips:
    1. Consumable parts such as heating elements, quartz tubes, sample crucibles, etc. are not included.
    2. Damage caused by the use of corrosive and acid gases is not covered by the warranty.
