Introduction:

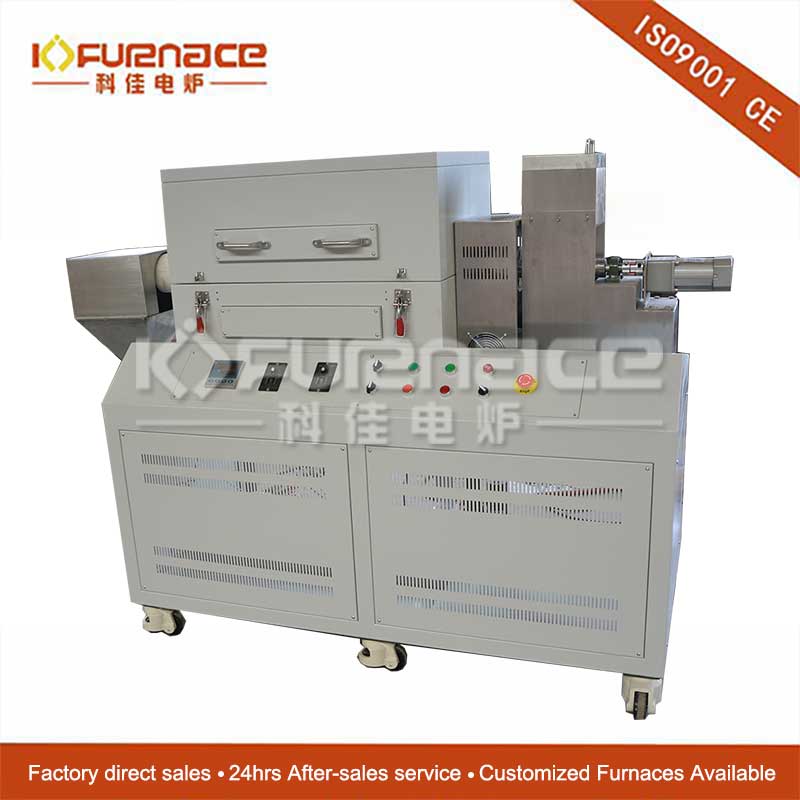

Rotary tube furnace is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity. Multi heating zone, condenser and tail gas collect equipment can be optional part according to different experiment.
Technical Parameter:
Rotary tube furnace is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity. Multi heating zone, condenser and tail gas collect equipment can be optional part according to different experiment.
Technical Parameter:
| Model | KJ-T1400 |
| Display | LED |
| Max. Temperature | 1400℃ Max for short time |
| Continuous working Temperature | ≤1350℃ |
| Heating Rate | Suggestion 0~5℃/min (If diameter is big, pls control the rate as slow as possible) |
| Temperature Zone | 500 mm (1 hot zone) |
| Temperature Control Accuracy | ±1℃ |
| Tube Size | Ф130mm x 1200mm ODxL |
| Tube Material | Alumina tube |
| Tube sealing | One side of tube is with feeder The other side is with outlet |
| Heating Element | Sic heating elements |
| Tube Rotating Speed | 0-5 RPM |
| Furnace Tilt Angle | 0~5℃ |
| Thermocouple | S Type |
| Max. Power | 15 KW approx. (accurate power depends on final design) |
| Working Voltage | AC 380V Three phases, 50Hz (or according to your requirement) |
| Temperature Control | PID automatic control via SCR power control |
| Heating curves | 30 steps programmable |
| Chamber material | Alumina Fiber |
| Warranty | One year limited warranty (Consumable parts such as heating elements and alumina tube are covered by the warranty) |
