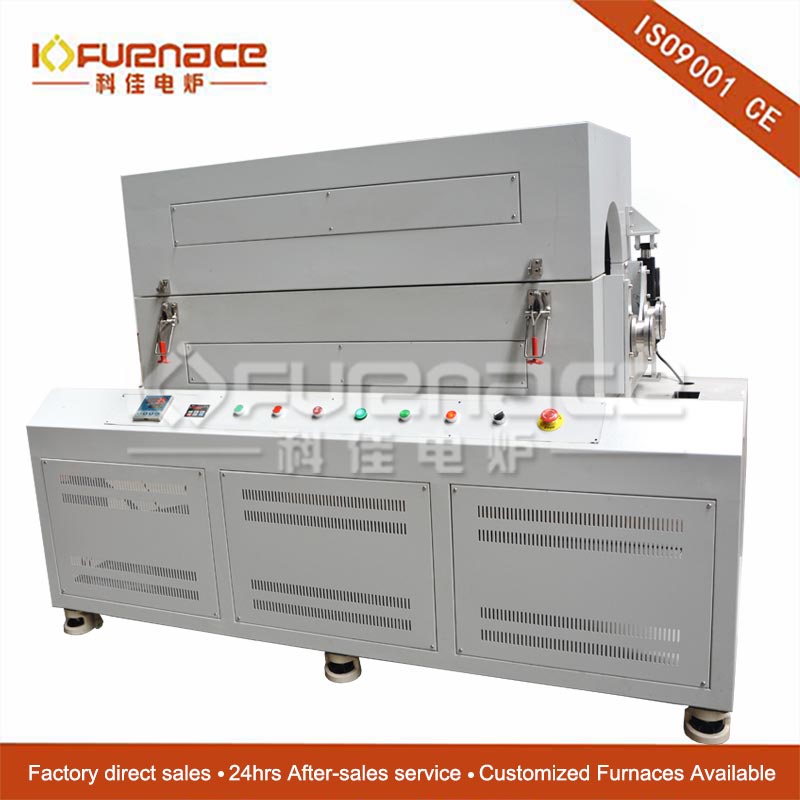

KJ-R1000-305IC 300mm diameter Rotary Tube Furnace
  • KJ-R1000-305IC 300mm diameter Rotary Tube Furnace
  • KJ-R1000-305IC 300mm diameter Rotary Tube Furnace
  • KJ-R1000-305IC 300mm diameter Rotary Tube Furnace
  • KJ-R1000-305IC 300mm diameter Rotary Tube Furnace
  • KJ-R1000-305IC 300mm diameter Rotary Tube Furnace

    Model:KJ-R1000-305IC

    Description:

    Introduction:
    Rotary tube furnace is a high temperature reactor with special rotary function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity.

    Introduction:
    Rotary tube furnace is a high temperature reactor with special rotary function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity.

    Technical Parameter:
    Model KJ-R1000-305IC
    Display LED
    Furnace door Electric open type
    Furnace max. working Temperature 1000℃
    Heating Rate Max. 0-20℃/min, Suggestion 0~10℃/min
    Temperature Control Accuracy ±1℃
    Chamber Diameter Ф305 mm
    Temperature Zone Single zone length 1000mm
    Heating Element SiC rods
    Tube Rotating Speed 0-10 RPM
    Rotary mechanism With Chain; tensioner; ball bearings to support tube
    Thermocouple K Type
    Max. Heating Power About 15KW (specific according to design)
    Working Voltage AC 480V, 3 phases, 50Hz (or according to your requirement)
    Temperature Control 30 steps programmable PID automatic control via SCR power control
    Chamber material Alumina polycrystalline fiber
    Warranty One year limited warranty (Consumable parts such as heating elements and mulite tube are not covered by the warranty)
