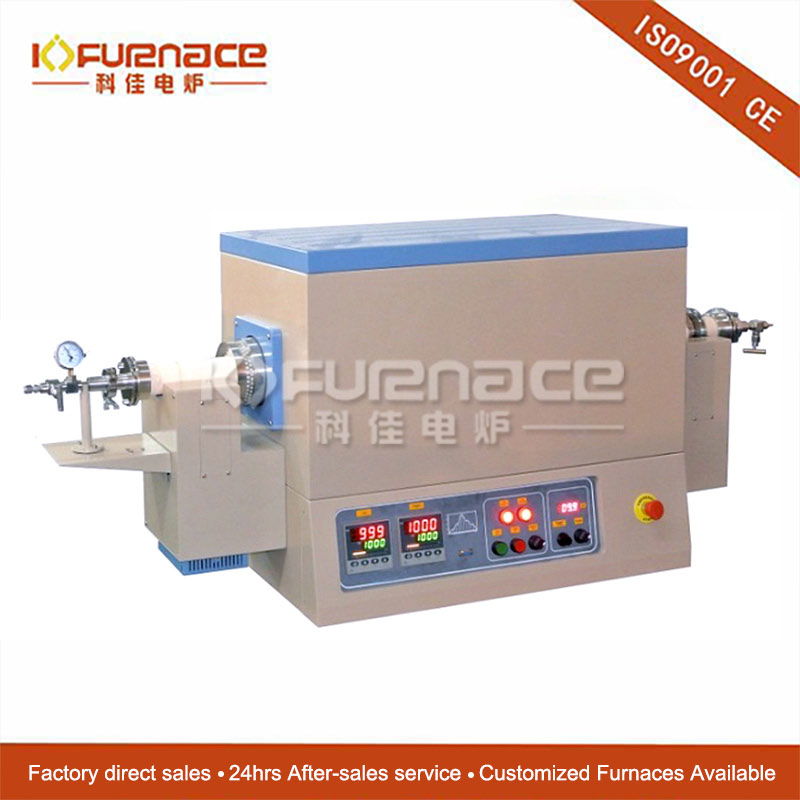

Furnace Construction
|
-
Double shell casing with three cooling fans
-
High purity Alumina fibrous insulation for max. energy saving
-
Dual heating zone with 1600ºC max. continuous working temperature
-
Electric motor to drive the tube at variable speed
|
Heating Zone length
&
Max. Working Temperature |
-
Two zones heated separately
-
Zone 1: working temperature 800 - 1700ºC (heated by MoSi2)
-
Zone 2: working temperature 800 - 1700ºC
-
Constant temperature zone length: 10" (250mm) within +/-1
-
Max. Heating rate: 10 oC/minute
|
Processing tube & Sealing Flange |
-
99.8% purity Alumina Tube
-
60 mm stainless steel vacuum sealing flange with valve and meter is included
-
One ceramic block is installed on each side flange to block thermal radiation during rotation
-
2-3/8" (60mm) O.D. x 2-1/8" (54mm) I.D x 48" (1200 mm) Length with inside block
|
Gas Fittings |
Inlet Fitting: Elbow Push-in connector for 6mm O.D tube; Outlet Fitting: Elbow Push-in connector for 12mm O.D tube |
Temperature Controller |
-
Two 30 segments programmable PID digital temperature controller
-
Note: To achieve fully temperature computerization please order a set of MTS-02 control modules. If you order the control module with the furnace we will install and test it before we ship out the product. We recommend you order a computer (laptop) from us.
|
Temperature Uniformity |
|
Tube rotating Speed |
|
Furnace tilt angle |
-
This furnace cannot be tilted
|
Max. Vacuum level |
-
4.5x10-2 torr (<0.1mtorr/s leaking rate if close all the valves to airtight the tube chamber)
|
Production Yield |
|
Power |
|
Voltage |
-
208 - 240V single phase (50 A Breaker required)
|
Warranty |
-
One year limited warranty with lifetime support
|
Compliance |
-
CE Certified
-
NRTL (UL61010) or CSA certification is available at extra cost.
|
Product net weight |
100 kg |
Product dimension |
1300 x 600 x 1200mm |
Shipping dimension: |
49" x 40" x 70" |
Shipping weight |
500 lbs |
Warning
|
-
The tube furnaces with alumina tube are designed for use under vacuum and low pressure < 0.02 MPa / 0.2 Bar/ 3 PSI
-
Attention: A two-stage pressure regulator must be installed on a gas cylinder to limit the pressure to below 3 PSI for safe operation.
-
Never heat the furnace while the gas release valve is closed and a positive pressure condition exists within the furnace chamber. The pressure gauge must be used to closely monitor the chamber condition at all times during the heating process; please open the gas release valve immediately once the chamber pressure has reached over 3 PSI to prevent unforeseeable damages.
-
The flow rate for gases should be limited to < 200 SCCM ( or 200ml/min )
-
limit definition for all alumina tube furnaces: * Vacuum pressures may only be safely used up to 1500°C
|
