Specific Introduction:

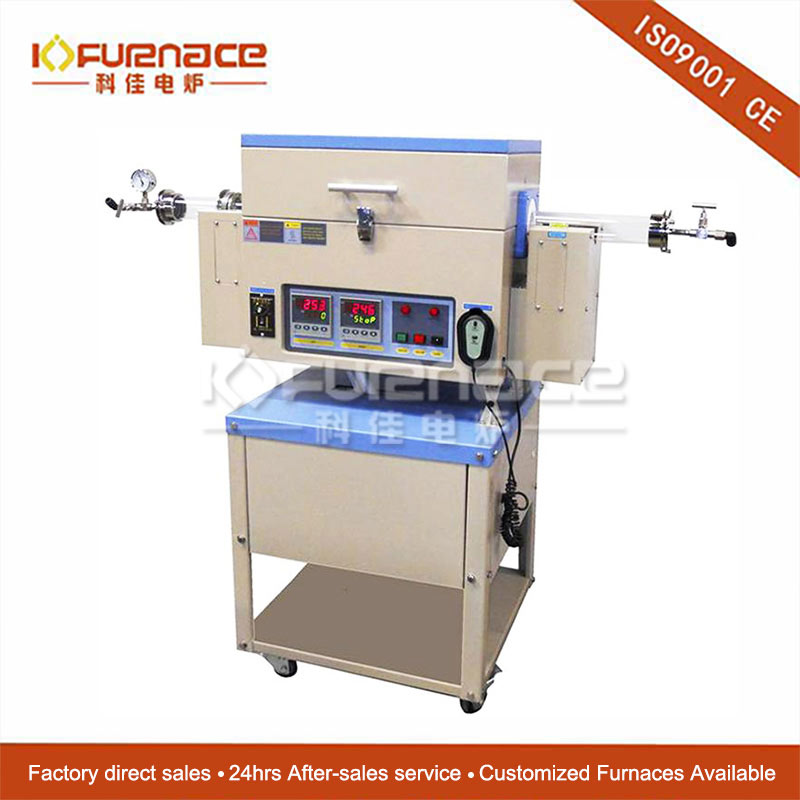

KJ-1200X-4 is a dual-temperature zone rotatable tube furnace that has passed CE certification. This equipment is specially designed for the mixed sintering of materials, especially for the mixed sintering of lithium-ion battery materials, such as LiFePO4, LiMnNiO4 and so on. The furnace tube diameter of the equipment is 4", and the use of two temperature zones for heating can provide a longer heating zone and a constant temperature zone
Parameters:
KJ-1200X-4 is a dual-temperature zone rotatable tube furnace that has passed CE certification. This equipment is specially designed for the mixed sintering of materials, especially for the mixed sintering of lithium-ion battery materials, such as LiFePO4, LiMnNiO4 and so on. The furnace tube diameter of the equipment is 4", and the use of two temperature zones for heating can provide a longer heating zone and a constant temperature zone
Parameters:
|
Main feature |
·Equipped with the function of opening the door and cutting off the power to improve the safety of the experiment ·The furnace body can be tilted and the tilt angle is adjustable (-5°-35°). ·Open design of furnace body, convenient to replace furnace tube. ·The two temperature zones are controlled by two independent temperature control systems. |
| Basic parameters | ·Temperature: 1100℃ (1200℃＜1h) ·Recommended heating rate: ≤10℃/min ·Constant temperature accuracy: ±1℃ ·Thermocouple: K-type thermocouple ·Power supply: AC208-240, 50Hz ·Power: 2.5KW |
| Heating element and temperature control system | ·Molybdenum iron chromium aluminum (the surface is coated with zirconia coating, which can greatly extend the service life) ·Contains a temperature controller ·PID automatic temperature control system ·Intelligent 30-segment programmable control ·Default DB9 PC communication connection port ·Passed MET certification ·Computer temperature control software can be purchased to control the heating curve and export data. |
| Furnace structure and tube size | ·Double-layer shell structure with air cooling system ·High-purity alumina fiber as the furnace material (the surface is coated with high-temperature alumina coating, which can improve the heating efficiency and extend the life of the furnace) ·A DC motor drives the furnace tube to rotate, and the speed is adjustable (0-10 r/min). ·Special-shaped quartz tube with a lifting plate welded inside to make the powder sintered more fully and uniformly ·Size: 60 mm OD (both ends) x 100 mm OD (middle) x 1200 mm L (shaped tube) |
| Flange | Using magnetic fluid flange seal |
| size | L1550mm * W600mm * H1320mm |
| weight | About 100 Kg |
| Warranty |
One-year warranty, lifetime maintenance Special tips: 1. Consumable parts such as heating elements, quartz tubes, sample crucibles, etc. are not included. 2. Damage caused by the use of corrosive gas and acid gas is not covered by the warranty. |
