Multi-position Tube Furnace
  • Multi-position Tube Furnace
  • Multi-position Tube Furnace
  • Multi-position Tube Furnace
  • Multi-position Tube Furnace
  • Multi-position Tube Furnace

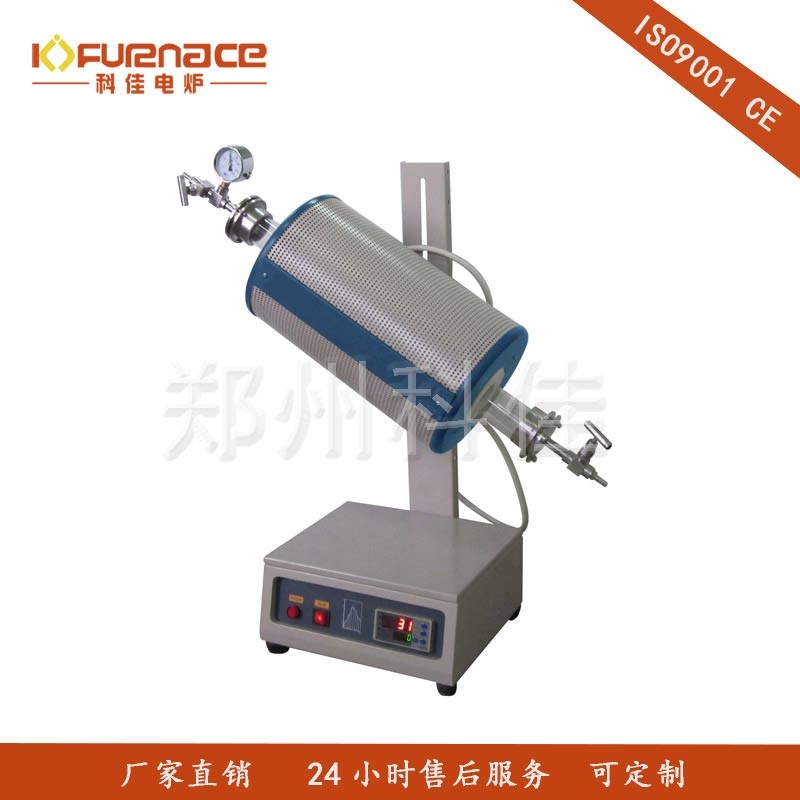

    Model:KJ-T1200-X

    Description:

    KJ-T1200-X Multi-position Tube Furnace is a 1200℃-top-temperature tube furnace. It can work horizontal, vertically and at any angles.

    Specific Introduction:
        This KJ-T1200-X tube furnace is mainly used for Nanotube study, CVD research, sintering, coating, soldering, annealing, melting, analyzing of metal and non-metal materials in both vacuum condition and atmosphere condition in laboratories and enterprises, it can be equipped with vacuum pump system and gas-mixing system.

    Parameters:

    Model

    KJ-T1200-30X

    KJ-T1200-40X

    KJ-T1200-50X

    KJ-T1200-60X

    Top Temperature

    1200℃

    Working Temperature

    1100℃

    Quartz Tube Diameter

    Φ30

    Φ40

    Φ50

    Φ60

    Heating zone length

    200/300mm

    Insulation layers

    High-Purity Alumina Ceramic fiber

    Power Supply

    110/220V 50/60HZ

    Heating Rate

    0-20℃/min

    Control Accuracy

    ±1℃

    Temperature Sensor

    K-type Thermocouple

    Heating Element

    0Cr27Al7Mo2 Resistance Wire

    Sealing

    Flanges

    Structure

    Non-Split

    Tilting Angle

    0-180

    Accessories

    Gloves, Crucibles, Tongs, Crucible hook.

    Optional

    Vacuum pumps, Gas-mixing system with mass flowmeters or float flowmeters.

    Customization is available.
