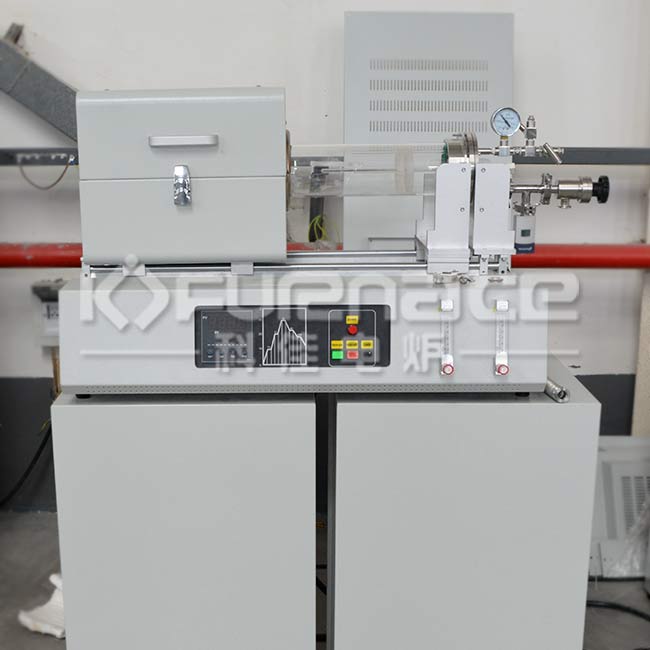

High Vacuum RTP-Rapid Annealing Furnace
  • High Vacuum RTP-Rapid Annealing Furnace
  • High Vacuum RTP-Rapid Annealing Furnace
  • High Vacuum RTP-Rapid Annealing Furnace
  • High Vacuum RTP-Rapid Annealing Furnace

    • High Vacuum RTP-Rapid Annealing Furnace

    Model：KJ-RTP110*200-1000

    Description：

    This RTP rapid annealing tube furnace has a high heating rate, high vacuum design, and the vacuum degree in cold state can reach 10Pa. Oil Design rotary vane pump and Inficon digital vacuum gauge.

    Leave A Message Online Chat
    IntroductionTechnical ParametersInquiry
    Parameter details：
    Tube outer diameter 110mm Tube outer diameter 200mm
    Max working temperature 1000C Controller LED
    Fiber liner High purity alumina fiber Heating rate 0~50C/S
    Thermal couple K Type Heating element halogen lamp
    Max heating power 24kW Power source 380V 3P
    Features：
    1. 1.Halogen heating element for fast heating.
    2. 2.Sliding rail for fast cooling.
    3. 3.PID automatic control via SCR power control, programmable heating process.
    4. 4.Replaceable heating element with long lifetime.
    5. 5.Unique split design for easy operation.

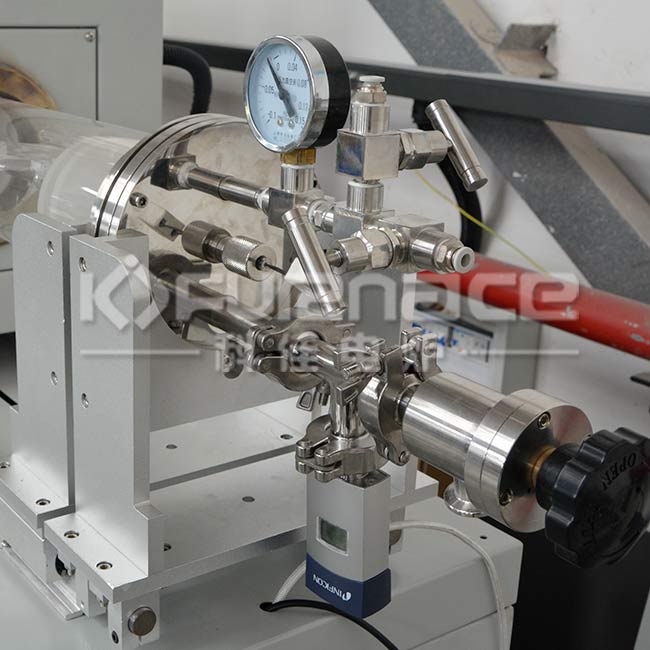

    6. 6.Two inlets, one outlet with corresponding valves, two manual float flowmeters for N2 gas and O2 gas.
    7. 7.Clean Quartz holder for sample.

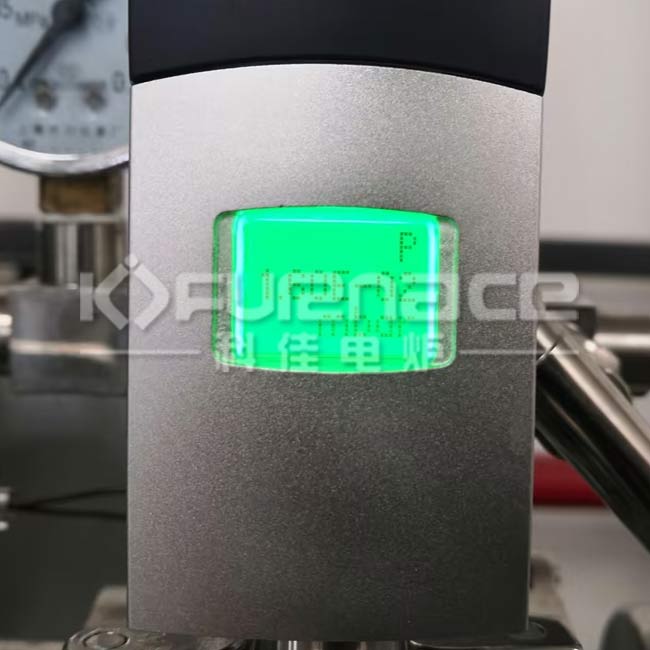

    8. 8.Vacuum design to reach a vacuum degree of 10Pa under cold state. Oil design rotary vane pump and Inficon digital vacuum gauge.
