Product description:

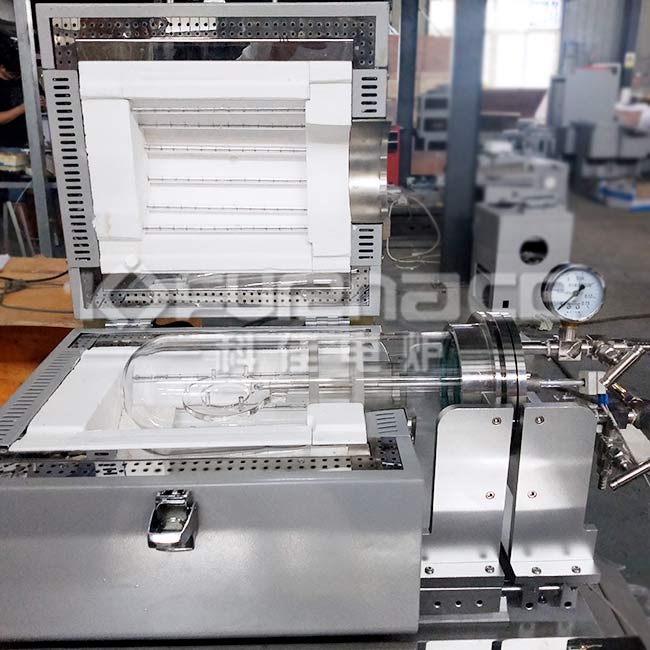

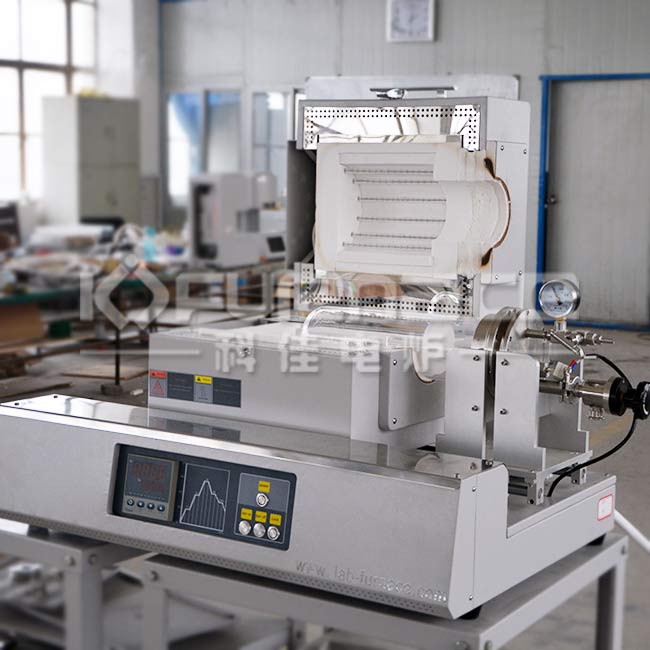

KJ-RTP1100-100IC sliding rail tube furnace is a compact rapid heat treatment tube furnace, which not only has a very fast heating rate, but also directly moves the sample to room temperature after the sintering process is completed to achieve the physical state rapid cooling down. The equipment adopts the gas path structure of the inner tube inlet and the outer tube outlet, so that the reaction atmosphere can fully and evenly contact the processed samples.
Applications:
The annealing furnace is a compact tube furnace for rapid heat treatment. It is a common equipment for growing large-size two-dimensional graphene by CVD. It is specially designed for the annealing of semiconductor or solar cell substrates. It uses infrared lamp heating, the fastest The heating rate is 50°C/sec. 30-stage temperature control with an accuracy of ±1°C°C. The computer controls the furnace and displays the temperature curve in real time through the RS485 port and control software.
Features:
1. Good temperature uniformity
2. Over temperature protection and alarm
3. PID automatic control by SCR power control
Technical Parameters:
KJ-RTP1100-100IC sliding rail tube furnace is a compact rapid heat treatment tube furnace, which not only has a very fast heating rate, but also directly moves the sample to room temperature after the sintering process is completed to achieve the physical state rapid cooling down. The equipment adopts the gas path structure of the inner tube inlet and the outer tube outlet, so that the reaction atmosphere can fully and evenly contact the processed samples.
Applications:
The annealing furnace is a compact tube furnace for rapid heat treatment. It is a common equipment for growing large-size two-dimensional graphene by CVD. It is specially designed for the annealing of semiconductor or solar cell substrates. It uses infrared lamp heating, the fastest The heating rate is 50°C/sec. 30-stage temperature control with an accuracy of ±1°C°C. The computer controls the furnace and displays the temperature curve in real time through the RS485 port and control software.
Features:
1. Good temperature uniformity
2. Over temperature protection and alarm
3. PID automatic control by SCR power control
Technical Parameters:
| Model |
KJ-RTP1100-100IC |
| Display method | LED |
| Furnace structure | Double layer cast steel shell |
| Max.temperature | 1000℃ |
| Recommended heating rate | 300℃/min |
| Number of temperature zones | single temperature zone |
| Temperature control accuracy | ±1℃ |
| Heating zone length | 200mm |
| Furnace tube diameter | OD100 |
| Furnace tube material | Quartz tube |
| Heating element | Infrared tube heating |
| Sealing means | vacuum flange |
| Thermocouple type | K type |
| Maximum power | 18KW |
| voltage | AC380V 50HZ Can be customized upon request |
| temperature control | PID Intelligent temperature control |
| heating curve | 30 segment programmable |
| Warranty | One year (except wearing parts) |
