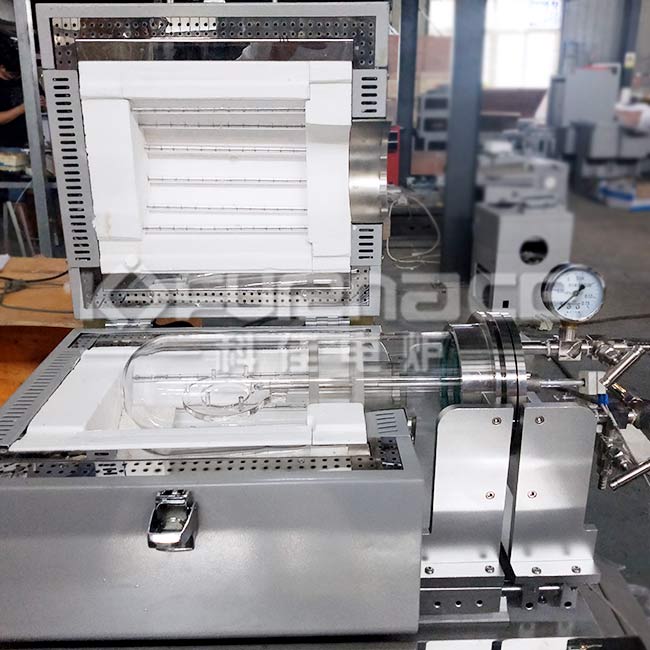

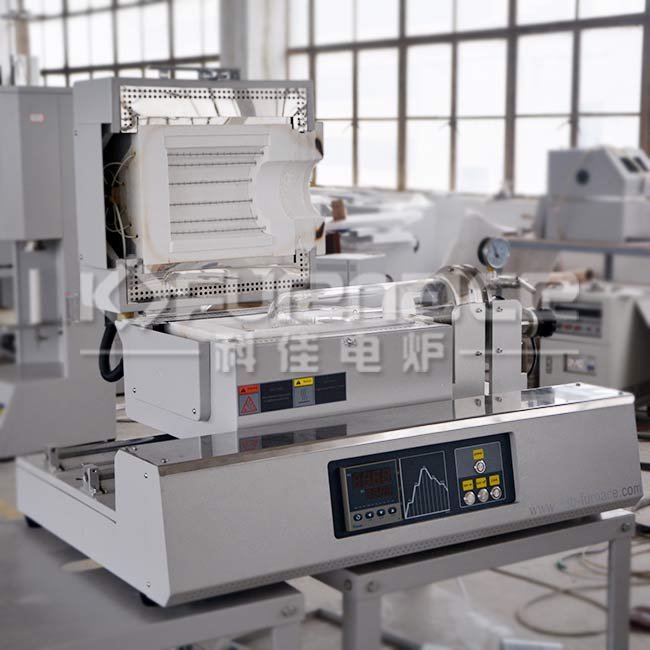

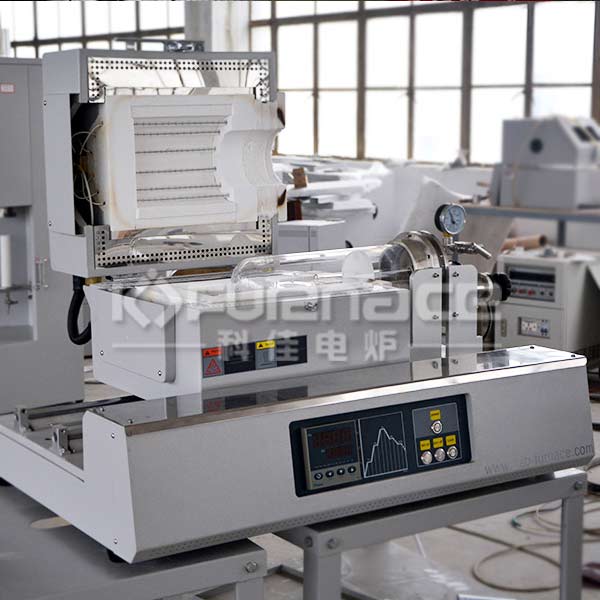

1200℃ RTP Annealing Tube Furnace with Slide-able Quartz Tube
  • 1200℃ RTP Annealing Tube Furnace with Slide-able Quartz Tube
  • 1200℃ RTP Annealing Tube Furnace with Slide-able Quartz Tube
  • 1200℃ RTP Annealing Tube Furnace with Slide-able Quartz Tube
  • 1200℃ RTP Annealing Tube Furnace with Slide-able Quartz Tube
  • 1200℃ RTP Annealing Tube Furnace with Slide-able Quartz Tube

    Model:KJ-T1200-RTP

    Description:

    This KJ-T1200-RTP tube furnace is mainly used for fast treatment including annealing, melting, siliczation, crystallization, densifying in both vacuum condition and atmosphere condition in laboratories and enterprises.

    Range of Application:
        This KJ-T1200-RTP tube furnace is mainly used for fast treatment including annealing, melting, siliczation, crystallization, densifying in both vacuum condition and atmosphere condition in laboratories and enterprises.

     Parameters:
    Model KJ-T1200-RTPc KJ-T1200-RTPd KJ-T1200-RTPe KJ-T1200-RTPf
    Top Temperature 1200℃
    Working Temperature 1100℃
    Quartz Tube Diameter Φ60 Φ80 Φ100 Φ110
    Heating zone length 300/440mm
    Insulation layers High-Purity Alumina Ceramic fiber
    Power Supply 110/220V 50/60HZ
    Heating Rate 0-20℃/min
    Control Accuracy ±1℃
    Temperature Sensor K-type Thermocouple
    Heating Element Infrared Lamps
    Sealing Slide-able Flanges
    Structure Split
    Accessories Gloves, Crucibles, Tongs, Crucible hook.
    Optional Vacuum pumps, Gas-mixing system with mass flowmeters or float flowmeters.
    Customization is available.
