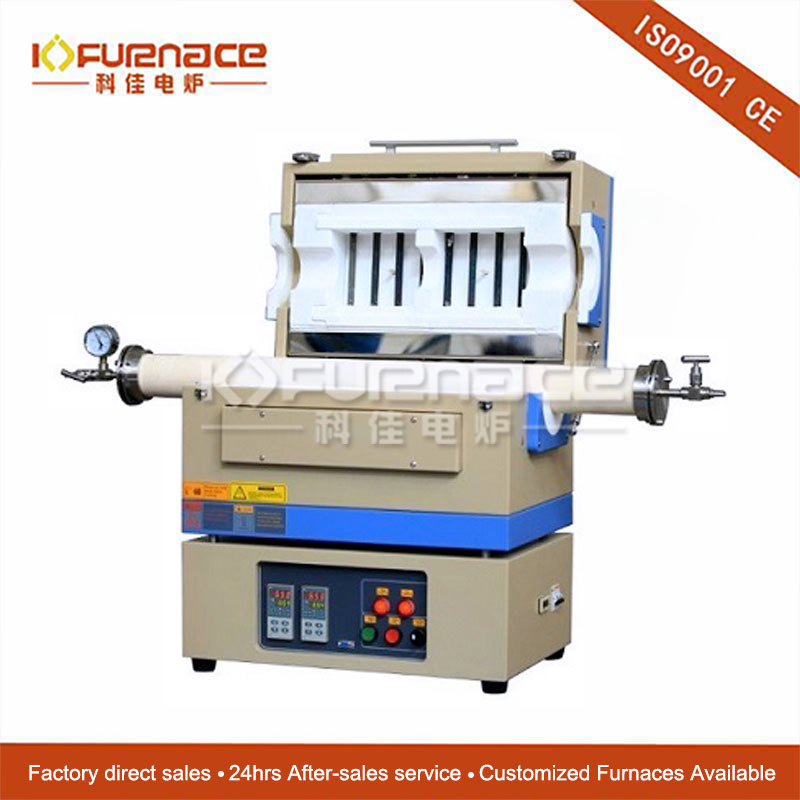

  • 1500℃ Two Zone Split Tube Furnace


    Continuous Temp:

    Chamber/Tube size:


    Specific Introduction:
        KJ-1500X-II is a dual temperature zone open type tube furnace. The two temperature zones are controlled by two independent temperature control systems. Each temperature zone can be set with 30 sections of temperature rise and fall programs, and it has a couple of breaks. With overheating protection, the temperature control accuracy is up to +/- 1°C, and the maximum temperature of the instrument can reach 1500°C. This high-temperature tube furnace is particularly suitable for annealing and sintering samples in an atmosphere protection or vacuum environment.
    Furnace structure ·Double shell structure
    ·Using high-purity alumina fiber as the furnace material, and the surface is coated with alumina coating (which can improve heating efficiency and extend service life)
    Equipped with the function of opening the door and power off to improve the safety of the experiment
    Basic parameters Thermocouple: S-type thermocouple. Suggested heating rate: below 1400℃≤10℃/min; above 1400℃≤5℃/min
    Temperature: 1400℃ (1500℃<30min) Power supply: two-phase, AC220, 50Hz Maximum power: 6KW
    Heating zone length: 400mm dual temperature zone: 200mm+200mm
    Furnace tube size ·Material: high purity corundum tube
    ·Optional pipe diameter: φ50, φ60, φ80
    ·Tube length: 1000 mm
    ·Optional flange bracket
    Heating element 16 1500ºC grade silicon carbide rods (φ14mmx 150mm heating length x 413mm length)
    Optional 1. The standard installation on the flange is a Φ8 pagoda nozzle joint
    2. In order to obtain a better pumping rate, KF25 adapters can be used
    3. In order to better pass the gas into the furnace tube, a 1/4" stainless steel ferrule joint can be used
    ·Optional: You can choose kf25 vacuum port flange
    ·Optional: You can order flange brackets
    Temperature Control System ·Contains a YD518P temperature controller
    ·PID automatic temperature control system
    ·Intelligent 30-segment programmable control
    ·Temperature control accuracy: ±1℃
    · Two temperature zones are controlled by two independent temperature control systems
    ·Default DB9 PC communication connection port
    ·Passed MET certification
    ·Computer temperature control software (for YD518P series controller) can be purchased to control the heating curve and export data
    Dimensions Furnace size: 1350 L x 700 W x 750 H mm
    Furnace size: 175X150X180X2
    Net weight 150Kg
    Warranty One year warranty and lifetime technical support.
    Special tips: 1. Consumable parts such as heating elements, quartz tubes, sample crucibles, etc. are not included.
    2. Damage caused by the use of corrosive gas and acid gas is not covered by the warranty.
    Vacuum system ·The mechanical pump can reach 50mTorr (reference value)
    ·It can reach 10E-5 Torr through molecular pump (reference value)
    ·A cold vacuum trap can be purchased to avoid pollution caused by the vacuum pump
    Quality Certification All electrical components (>24V) have passed UL/MET/CSA/CE certification. If the customer pays the certification fee, the company guarantees that a single device has passed the German TUV certification or CAS certification.
    Precautions for use · Pipe plugs should be added on both sides of the equipment to ensure the sealing of the constant temperature zone and flange.
    · Please use the program to cool down when cooling down. It is not recommended to directly press the "STOP" button to cool down. Do not turn off the power of the device before the device temperature drops to room temperature to prevent safety problems
    ·The air pressure in the furnace tube cannot be higher than 0.02MPa
    Do not use graphite crucible in alumina tube
    ·Because the internal pressure of the gas cylinder is relatively high, a pressure reducing valve must be installed on the gas cylinder when the gas is fed into the furnace tube. It is recommended to purchase a pressure reducing valve from our company. The range of our company's pressure reducing valve is 0.01MPa-0.1MPa. It will be more precise and safe to use
    ·Can not maintain negative pressure operation at 1400℃ high temperature
    ·The gas flow into the furnace tube must be less than 200SCCM to avoid the impact of the cold atmosphere on the heated corundum tube. The long-term use temperature of the corundum tube is <1750℃
    ·For the sample heating experiment, it is not recommended to close the exhaust valve and intake valve at the flange end of the furnace tube. If you need to close the gas valve to heat the sample, you should always pay attention to the indication of the pressure gauge. If the indication of the air pressure is greater than 0.02MPa, you must open the vent valve immediately to prevent accidents (such as furnace tube rupture, flange flying, etc.)
