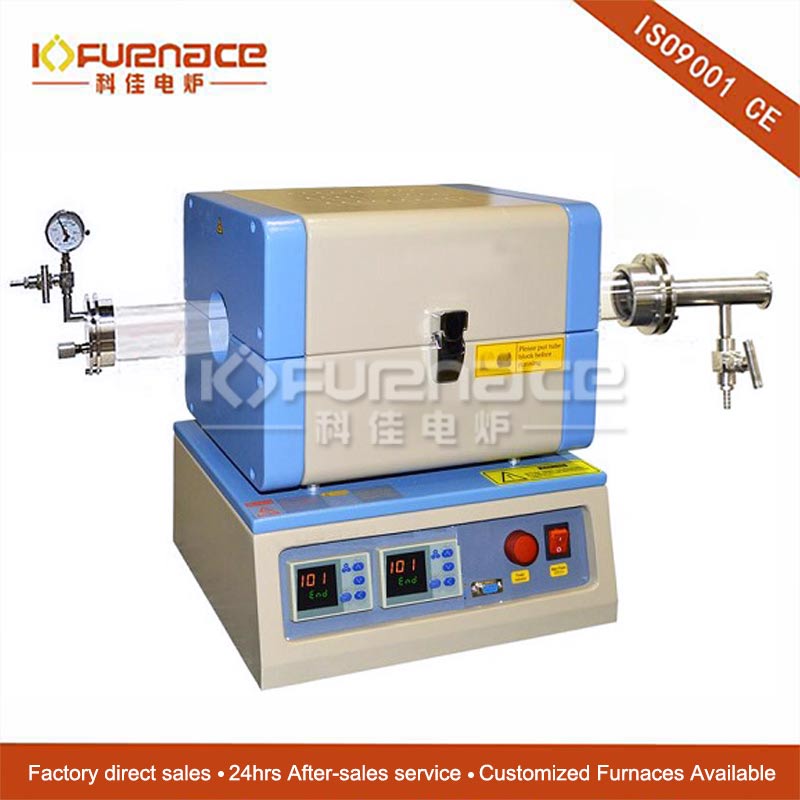

Furnace Structure |
-
Double-layer steel structure.
-
High purity Al2O3 fibrous insulation with Max. energy saving
-
High purity alumina coating on refractory ceramics for longer service life.
-
Two 4" length heating zone which can be controlled by temperature independently.
-
Dual Heating zone design and Alumina circle block help you build customized Temperature Gradient inside the tube.
-
All electric components (>24V) are UL certified and ready to pass TUV, CSA, and UL test
|
Power |
-
110V AC, single phase, 50/60 Hz
-
1.5 KW
|
Max. Temperature |
1200°C (<1 hour) |
Continuous Temperature |
1100°C ( continuous) |
Max. Heating Rate |
≤ 20°C/min |
Heating Zone Length |
-
Two heating zone and each zone length is 100mm and 200 mm in total
|
Constant Temp. Zone
&
Temperature Gradient |
-
50mm within +/-1°C ( If set two zones at the same temperature )
-
70mm within +/-2°C ( If set two zones at the same temperature )
-
Max. temperature gradient : 1°C/ mm ( one zone heating )
-
Max. temp difference between the adjacent zones ~100°C (heat up one zone only, without the isolator between the adjacent zones)
|
Temperature Controller |
-
Two temperature controllers are built to control the heating zone independently via K-type thermal couples
-
PID automatic control via solid-state relay with 30 steps programmable
-
Built in Over Temperature and Thermocouple Failure Protection
|
Temperature Accuracy |
+/- 1°C |
Heating Elements |
Fe-Cr-Al Alloy doped by Mo |
Tube Size
Please select the tube size in the options bar, ( click below to order spare tube ) |
1" quartz tube (25mm O.D x 22mm I.D x 450mm L)
-
Two fibrous ceramic tube blocks are included
-
Quartz blocks (optional) are ideal for clean & Hight vacuum
-
May order flange support to avoid tube rotating.
|
2" quartz tube (50mm O.D x 44mm I.D x 600mm L)
Two fibrous ceramic tube blocks are included for blocking heat radiation from the tube chamber. (Ceramic blocks must be fully inserted into the furnace chamber before heating) |
Vacuum Flanges |
1" flange has no thermocouple insert |
2" and 2.36"(Option) tube flange |
Vacuum Level |
10-3torr (by mechanical pump) |
Fitting Ports
&
Optional Parts |
-
You may need a vacuum valve at the vacuum port
-
You may consider ordering quick connecting flange at extra cost.
-
You may contact us to order the furnace with a vacuum pump and a temperature calibration kit.
|
Pressure Measurement & Monitoring |
-
Standard mechanical vacuum gauge measures within a pressure range of -0.1 to 0.15Mpa is included.
-
OPTIONAL: A gas-type independent (above 10mbar) digital vacuum gauge with a wide range between 3.8x10-5 to 1125 Torr. Aside from greater measurement precision, this gauge reduces risks of chamber explosions caused by the incorrect reading of gas pressures due to gas-type dependency.
|
Dimensions
|
With lid closed: 340mm(L) × 300mm(W) × 400mm(H)
With lid open: 340mm(L) × 300mm(W) × 560mm(H) |
Net Weight |
35 Kg |
Shipping Package Size |
40''(L) x 25''(W) x 35''(H) |
Shipping Weight |
110 lbs |
Warranty |
One year limited warranty with lifetime support (Consumable parts such as processing tubes and o-rings are not covered by the warranty, please order replacements at related products.) |
Compliance |
-
CE Certified
-
NRTL or CSA certification is available at extra cost.
|
Application Notes & Warning
|
-
Tube furnaces with quartz tubes are designed for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa. Vacuum pressures may only be safely used up to 1000°C
-
Attention: A two-stage pressure regulator must be installed on a gas cylinder to limit the pressure to below 3 PSI for safe operation.
|
