Mini 3-Zone Split Tube Furnace
  • Mini 3-Zone Split Tube Furnace
  • Mini 3-Zone Split Tube Furnace
  • Mini 3-Zone Split Tube Furnace
  • Mini 3-Zone Split Tube Furnace
  • Mini 3-Zone Split Tube Furnace

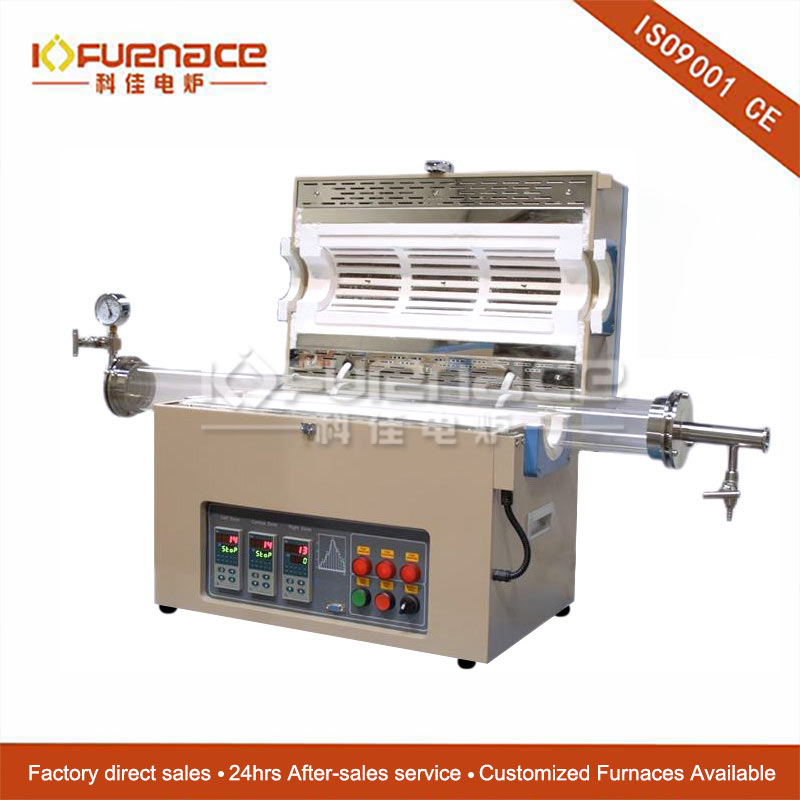

    KJ-1200X-III-C is an open-type three-zone tube furnace with a heating zone of 450mm (150+150+150mm). The diameter of the quartz furnace tube is 25, 50, 60, 80 or 100mm.

    Specific Introduction:
        KJ-1200X-III-C is an open-type three-zone tube furnace with a heating zone of 450mm (150+150+150mm). The diameter of the quartz furnace tube is 25, 50, 60, 80 or 100mm. The three temperature zones are controlled by an independent temperature control system, which can set 30 steps of temperature rise and fall programs, the temperature control accuracy is +/- 1℃, and the maximum temperature can reach 1200℃.
    Furnace structure

    ·Double-layer shell structure with air cooling system
    ·High-purity alumina fiber as the furnace material (the surface is coated with high-temperature alumina coating, which can improve the heating efficiency and extend the life of the furnace)
    ·Quartz tube plug and quartz crucible can be purchased, which can increase the cleanliness and vacuum in the furnace tube
    Equipped with the function of opening the door and power off to improve the safety of the experiment
    Basic parameters Thermocouple: K-type thermocouple. Suggested heating rate: ≤10℃/min
    Temperature: 1100℃ Power supply: AC220, 50Hz Maximum power: 3.6KW
    High purity quartz tube size ·High purity quartz tube size:
    ·25 O.D x 19 I.D x 1000 L (mm)
    ·50 O.D x 44 I.D x 1000 L (mm)
    ·60 O.D x 55 I.D x 1000 L (mm)
    ·80 O.D x 75 I.D x 1000 L (mm)
    ·100 O.D x 95 I.D x 1000 L (mm)
    Heating zone Heating zone length: 450mm (three temperature zones: 150mm+150mm+150mm)
    Heating element Doped with molybdenum, iron, chromium and aluminum (the surface is coated with zirconia coating, which can greatly extend the service life)
    Sealing flange ·A pair of SS 304 vacuum flanges and double high temperature silicon O-rings are included
    ·Two needle valves have been installed on two flanges respectively
    ·A vacuum pressure gauge is installed on one side flange
    ·Optional: You can choose kf25 vacuum port flange
    ·Optional: You can order flange brackets
    Temperature Control System ·Contains a YD518P temperature controller
    ·PID automatic temperature control system
    ·Intelligent 30-segment programmable control
    ·Temperature control accuracy: ±1℃
    ·Three temperature zones are controlled by three independent temperature control systems
    ·Default DB9 PC communication connection port
    ·Passed MET certification
    ·Computer temperature control software (for YD518P series controller) can be purchased to control the heating curve and export data
    Temperature calibration (optional) ·Regularly calibrate the temperature of the tube furnace to maintain the accuracy and uniformity of the temperature. You can purchase a simple calibration kit from our company to assist you in this work. The complete calibration kit includes
    ·48"L (1/4"OD) K-type thermocouple calibration
    ·An Omega temperature calibrator
    ·Thermocouple Compensation Wire
    ·You can consider a molecular pump, the vacuum degree can reach 10-5 Torr
    Dimensions · Dimensions when closed: 640 L x 420 W x 550 H mm
    · Dimensions when opening: 640 L x 420 W x 780 H mm
    ·Furnace size: Φ120X147X3
    Net weight 45Kg
    Warranty One year warranty and lifetime technical support.
    Special tips: 1. Consumable parts such as heating elements, quartz tubes, sample crucibles, etc. are not included.
    2. Damage caused by the use of corrosive gas and acid gas is not covered by the warranty.
    Vacuum system ·It can reach 50mTorr by mechanical pump
    ·It can reach 10E-5 Torr through molecular pump
    ·A cold vacuum trap can be purchased to avoid pollution caused by the vacuum pump
    Quality Certification CE certification.
    Precautions for use ·The air pressure in the furnace tube cannot be higher than 0.02MPa
    ·Because the internal pressure of the gas cylinder is high, a pressure reducing valve must be installed on the gas cylinder when gas is introduced into the furnace tube. To ensure safety, it is recommended to use a pressure lower than 0.02MPa. It is recommended to purchase a pressure reducing valve from our company. The company's pressure reducing valve has a range of 0.01MPa-0.1MPa, which will be more accurate and safe when used
    ·When the furnace body temperature is higher than 1000℃, the furnace tube must not be in a vacuum state, and the air pressure in the furnace tube must be equal to atmospheric pressure
    ·The gas flow into the furnace tube must be less than 200SCCM to avoid the impact of the cold atmosphere on the heated quartz tube
    ·Long-term use temperature of quartz tube <1100℃
    ·For the sample heating experiment, it is not recommended to close the exhaust valve and intake valve at the flange end of the furnace tube. If you need to close the gas valve to heat the sample, you should always pay attention to the indication of the pressure gauge. If the indication of the air pressure is greater than 0.02MPa, you must open the vent valve immediately to prevent accidents (such as furnace tube rupture, flange flying, etc.)
