Specific Introduction:

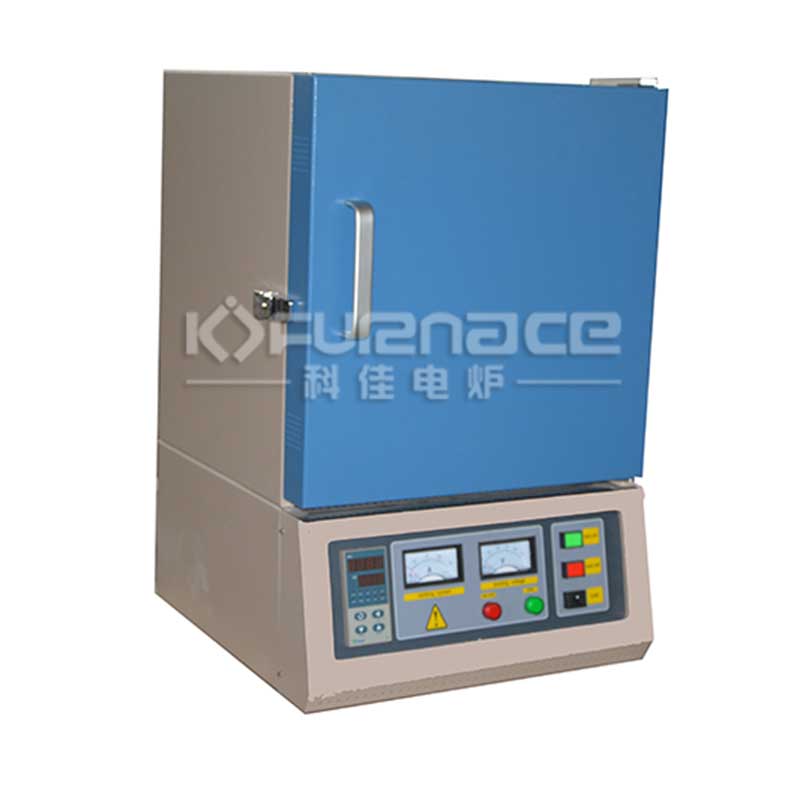

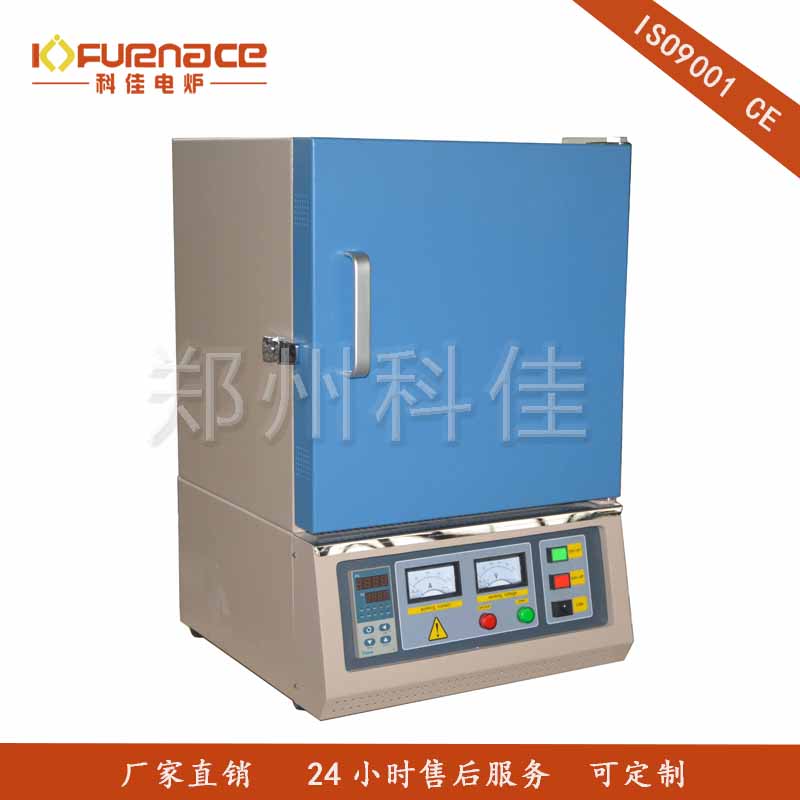

KJ-M1400-12LZ box furnace is CE-approved with SiC heating rods as heating element, SCR, 518p intellectual temperature controller and S-type thermocouple to achieve high temperature and automatic control. The top temperature can reach 1450℃. Inside the heating chamber, the high-temperature alumina coating increases the energy efficiency and prolong the service life of the furnace.
Parameters：
KJ-M1400-12LZ box furnace is CE-approved with SiC heating rods as heating element, SCR, 518p intellectual temperature controller and S-type thermocouple to achieve high temperature and automatic control. The top temperature can reach 1450℃. Inside the heating chamber, the high-temperature alumina coating increases the energy efficiency and prolong the service life of the furnace.
Parameters：
| Model | KJ-M1400-12LZ |
| Working Chamber Size | 200*200*300mm |
| Heating Chamber Material | High-Purity Alumina Ceramic fiber |
| Working temperature | Top temperature: 1400℃ Working temperature: 1300℃ |
| Temperature Control | PID, Intellectual 30-segment Programmable Controller |
| Heating Rate | 0-30℃/min(Suggestion: 0-10℃/min) |
| Control Accuracy | ±1℃ |
| Heating Element | SiC heating rods |
| Temperature Sensor | S-type Thermocouple (With Breakage and over-heating alarm) |
| Outside Shell | Electrostatic sprayed Carbon Steel Outside Shell with Cooling Fans |
| Door | Side-open |
| Power Supply | 220V 50HZ/60HZ （Customizable） |
| Plug | Please let us know the plug in your country when you book the furnace. |
| Max. Power | 4.5kW |
| Accessories | Door block, Crucible Tong, Gloves, Instruction manual |
| Option | Crucible, Screen Control, Software |
| Notes | 1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10℃/min. 2, This furnace is not air-tight. 3, It is normal that there will be tiny cracks on the wall of the heating chamber, they won’t affect the performance of the furnace, and can be repaired with alumina coating. |
| Warranty |
One year warranty with life-time technical support. Special notes: 1, Consumables like heating element, quartz, crucible and so on are uncovered. 2, Man-made damage and damage caused by misuse are uncovered. |
