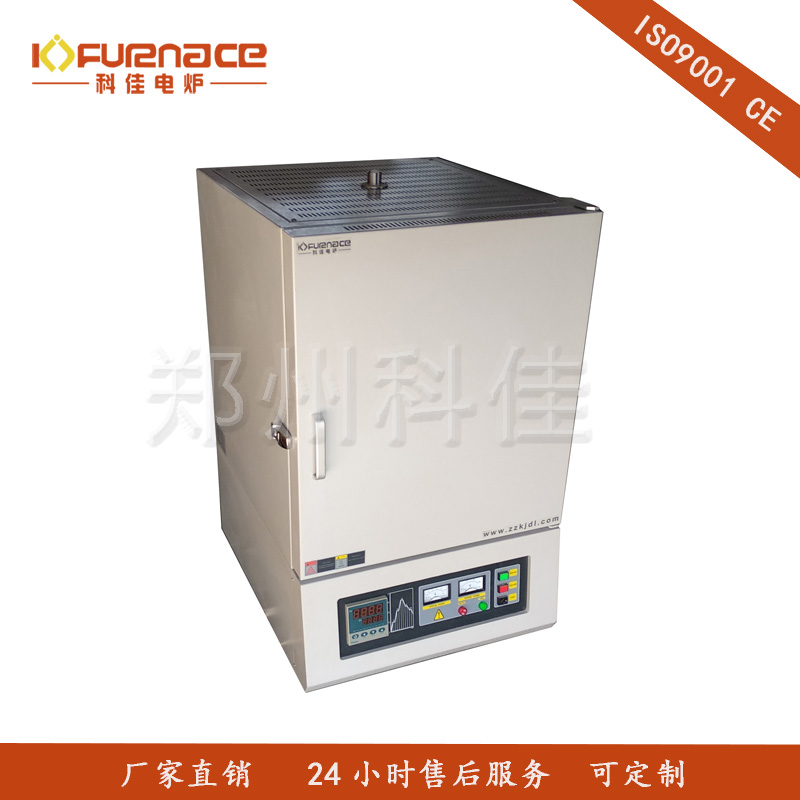

1200℃ high-temperature box-type muffle furnace-12L
  • 1200℃ high-temperature box-type muffle furnace-12L
  • 1200℃ high-temperature box-type muffle furnace-12L
  • 1200℃ high-temperature box-type muffle furnace-12L
  • 1200℃ high-temperature box-type muffle furnace-12L
  • 1200℃ high-temperature box-type muffle furnace-12L

    Model:KJ-M1200-12LZ

    Description:

    KJ-M1200-12LZ box-type muffle furnace adopts 0Cr27Al7Mo2 resistance wire as heating element, double layers of alumina ceramic fiber as insulation layer and 30-segment-programmable controller, cooling fans between the heating chamber and outside shell.

    Specific Introduction:
    With 0Cr27Al7Mo2 resistance as heating element, double layers of alumina ceramic fiber as insulation layer, and 30-segment-programmable controller, its temperature can go up to 1200℃ and work continuously for long time at 1100℃ with temperature accuracy of 1 . It characterizes with uniform temperature, low surface temperature, fast heating and cooling, high energy efficiency. It’s a ideal furnace for high temperature sintering, annealing and quality test in laboratory, universities, enterprises and research institutions.
    Parameters:
    Model KJ-M1200-12LZ
    Working Chamber Size 300*300*400mm
    Heating Chamber Material High-Purity Alumina Ceramic fiber
    Working temperature Top temperature: 1200℃
    Working temperature: 1100℃
    Temperature Control PID, Intellectual 30-segment Programmable Controller
    Heating Rate 0-30℃/min
    Control Accuracy ±1℃
    Heating Element 0Cr27Al7Mo2 Resistance Wire
    Temperature Sensor K-type Thermocouple
    (With Breakage and over-heating alarm)
    Outside Shell Electrostatic sprayed Carbon Steel Outside Shell with Cooling Fans
    Door Side-open Design
    Power Supply 220V   50HZ/60HZ
    (Customizable)
    Plug Please let us know the plug in your country when you book the furnace.
    Max. Power 4.5kW
    Accessories Crucible Tong, Gloves, Instruction manual
    Option Crucible, Screen Control, Software
    Notes: 1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10℃/min.
    2, Cooling rate no higher than 5℃/min.
    3, This furnace is not air-tight.
    4, It is normal that there will be tiny cracks on the wall of the heating chamber, they won’t affect the performance of the furnace, and can be repaired with alumina coating.
    5, The heating chamber is replaceable.
    6, We suggest you put the furnace in the fume hood if the material you heat release smoke or any harmful gas.

    Warranty
    One year warranty with life-time technical support.
    Special notes:
    1, Consumables like heating element, quartz, crucible and so on are uncovered.
    2, Man-made damage and damage caused by misuse are uncovered.

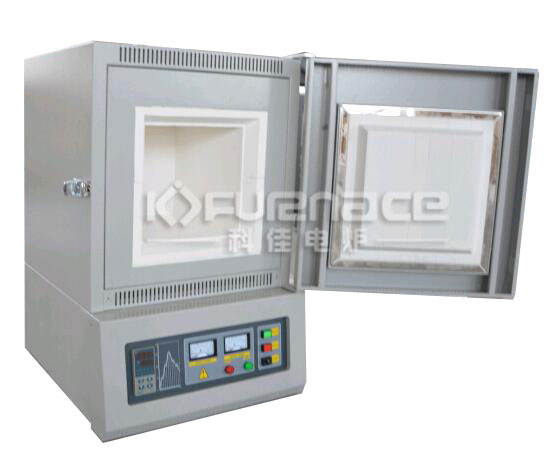

    muffle furnace temperature
