Kejia KJ-M1700-Z Bottom Loading Muffle Furnace
  • Kejia KJ-M1700-Z Bottom Loading Muffle Furnace
  • Kejia KJ-M1700-Z Bottom Loading Muffle Furnace
  • Kejia KJ-M1700-Z Bottom Loading Muffle Furnace
  • Kejia KJ-M1700-Z Bottom Loading Muffle Furnace
  • Kejia KJ-M1700-Z Bottom Loading Muffle Furnace

    Model:KJ-M1700-Z

    Description:

    Kejia bottom loading muffle furnace consists of high quality alumina fiber brick and MoSi2 rods heating elements, the internal chamber heated from four sides, furnace bottom can lift and drop. It is an ideal tool for materials annealing and sintering in y

    Brief Introduction:
    Kejia bottom loading muffle furnace consists of high quality alumina fiber brick and MoSi2 rods heating elements, the internal chamber heated from four sides, furnace bottom can lift and drop. It is an ideal tool for materials annealing and sintering in your research laboratory.
    The main features are as below:
    1. High uniform temperature.
    2. Temperature Control Accuracy:±1℃
    3.Easy to operate.
    4.Over temperature protection and alarm.
    5.Compact furnace chamber with lift and drop tray.

    Technical Parameter:
    1 Chamber Structure Bottom Lifting type

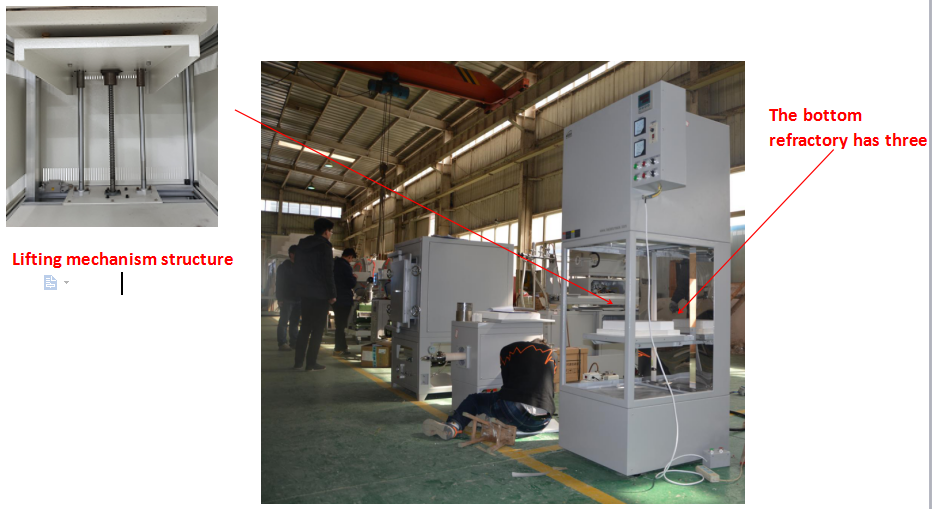

    2 Tray Movement Mechanical Lifting and Descending System;
    3 Display LED
    4 Furnace body structure Double layer structure with cooling fan
    5 Furnace shell material Carbon steel
    6 Max. Temperature 1700℃
    7 Continuous working Temperature ≤1600℃
    8 Heating Rate   20℃/min (Suggest 0~10℃/min)
    9 Accuracy ±1℃
    10 Inside Chamber Size 350x350x350mm
    11 Heating Element MoSi2 rods
    12 Insulation material High purity alumina fiber
    13 Thermocouple B Type
    14 Max. Power 18KW
    15 Working Voltage 110-418V, 50/60HZ
    16   Temperature Control PID automatic control via SCR power control
    17 Heating curves 30 steps programmable
    18 Warranty One year limited warranty (Consumable parts such as heating elements are not covered by the warranty)
    bottom loading furnace
