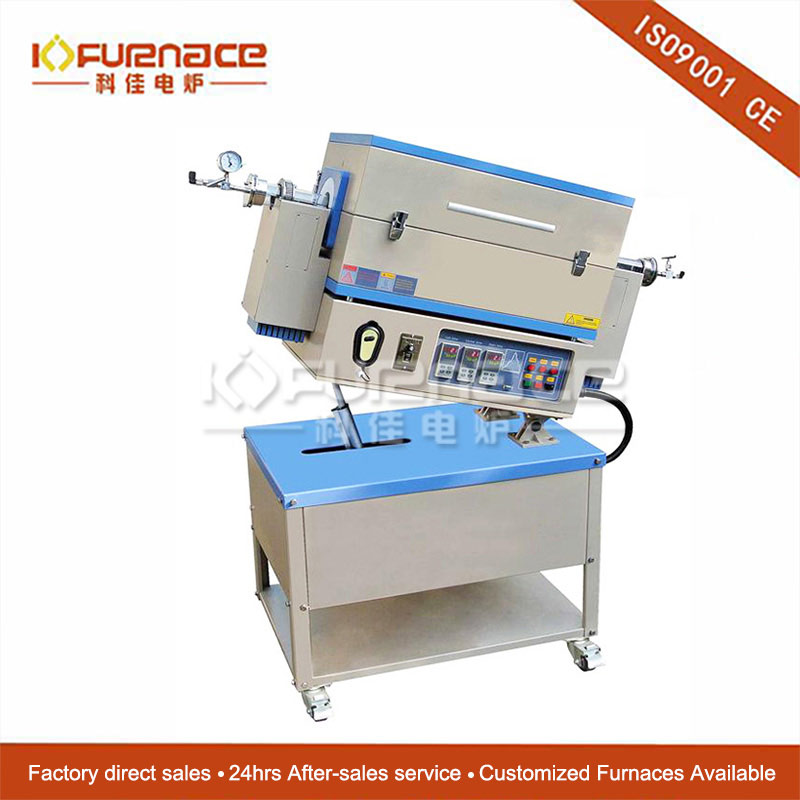

1200℃ tiltable rotary furnace
1200℃ tiltable rotary furnace

1200℃ tiltable rotary furnace

Model:KJ-1200X-5L-R

Description:

KJ-1200X-5L-R is a CE-certified three-temperature zone rotary furnace, mainly for the mixed burning of powder, the furnace tube is welded with 4 lifting plates, and the furnace tube can be 360° when the instrument is running Rotation can increase the uniformity of powder sintering

Detailed
Specific Introduction:
    KJ-1200X-5L-R is a CE-certified three-temperature zone rotary furnace, mainly for the mixed burning of powder, the furnace tube is welded with 4 lifting plates, and the furnace tube can be 360° when the instrument is running Rotation can increase the uniformity of powder sintering, so it is particularly suitable for the sintering of lithium battery materials, such as LiFePO4, LiMnNiO4, etc. The diameter of this rotary furnace is 5", and the heating zone can reach 600mm, so it is suitable for sintering more powder in the laboratory.
Parameters:
Main feature ·The furnace body is open-type design, which is convenient for operation and rapid cooling of samples.
·The three temperature zones are controlled by three independent temperature control systems.
· 0-10rpm speed is adjustable.
·0-30o tilt angle is adjustable.
·Open the door and cut off the power to improve the safety of the experiment.
Basic parameters ·Temperature: 1100℃ (1200℃<1h)
·Recommended heating rate: ≤10℃/min
·Thermocouple: K-type thermocouple
·Power supply: AC220V, 50Hz
·Power: 5KW
Temperature Control System ·PID automatic temperature control system
·Intelligent 30-segment programmable control
RS485 interface is installed on the furnace body
·Computer temperature control software can be purchased to control the heating curve and export data
Furnace structure and tube size ·Double-layer shell structure with air cooling system
·High-purity alumina fiber as the furnace material (the surface is coated with high-temperature alumina coating, which can improve the heating efficiency and extend the life of the furnace)
·Special-shaped quartz tube with a lifting plate welded inside to make the powder sintered more fully and uniformly
·Size: Φ60*1200*5 "(Special-shaped tube)
Sealing flange The magnetic fluid sealing flange is used to ensure that the connecting pipe at the front end of the flange does not rotate when the furnace tube rotates
size Furnace body: 1950mm(L) x 600mm(W) x 1320mm(H)
weight 130Kg
Warranty One-year warranty, lifetime maintenance Special tips: 1. Consumable parts such as heating elements, quartz tubes, sample crucibles, etc. are not included. 2. Damage caused by the use of corrosive gas and acid gas is not covered by the warranty.
