Position:Home > Products > Tube Furnace > RTP fast Annealing Furnace >
1200℃ RTP Annealing Tube Furnace with Slide-able Quartz Tube

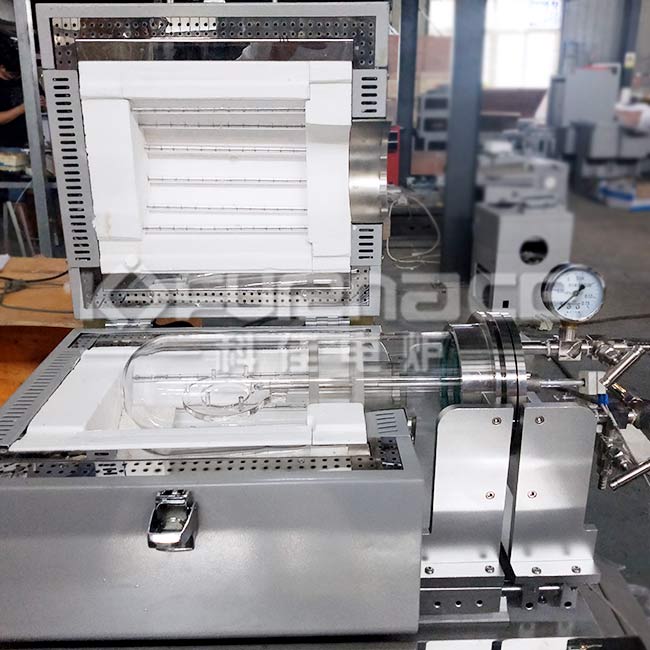

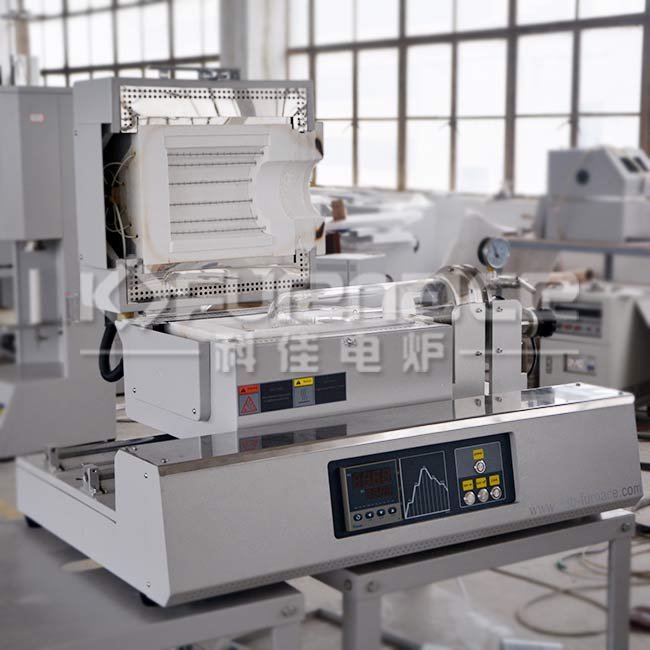

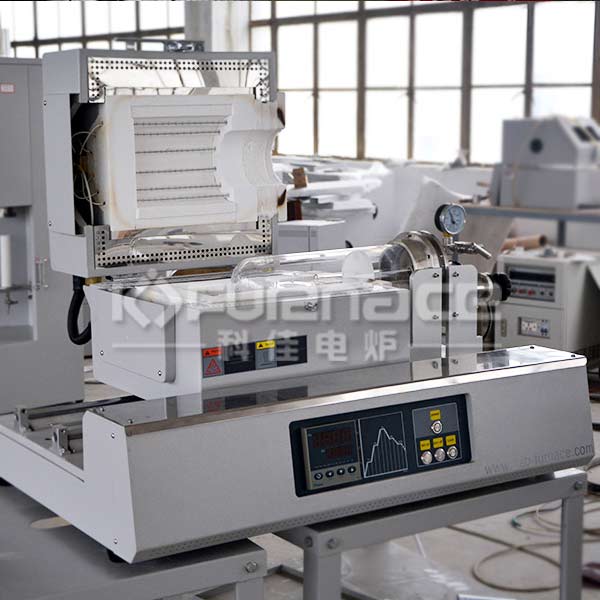

1200℃ RTP Annealing Tube Furnace with Slide-able Quartz Tube

1200℃ RTP Annealing Tube Furnace with Slide-able Quartz Tube

Model:KJ-T1200-RTP

Description:

KJ-T1200-RTP is an elaborately-designed laboratory tube furnace with infrared lamps as heating element. The heating rate can reach 50℃/second.

Detailed
Range of Application:
    This KJ-T1200-RTP tube furnace is mainly used for fast treatment including annealing, melting, siliczation, crystallization, densifying in both vacuum condition and atmosphere condition in laboratories and enterprises.

 Parameters:

Model

KJ-T1200-RTPc

KJ-T1200-RTPd

KJ-T1200-RTPe

KJ-T1200-RTPf

Top Temperature

1200℃

Working Temperature

1100℃

Quartz Tube Diameter

Φ60

Φ80

Φ100

Φ110

Heating zone length

300/440mm

Insulation layers

High-Purity Alumina Ceramic fiber

Power Supply

110/220V 50/60HZ

Heating Rate

0-20℃/min

Control Accuracy

±1℃

Temperature Sensor

K-type Thermocouple

Heating Element

Infrared Lamps

Sealing

Slide-able Flanges

Structure

Split

Accessories

Gloves, Crucibles, Tongs, Crucible hook.

Optional

Vacuum pumps, Gas-mixing system with mass flowmeters or float flowmeters.

Customization is available.
