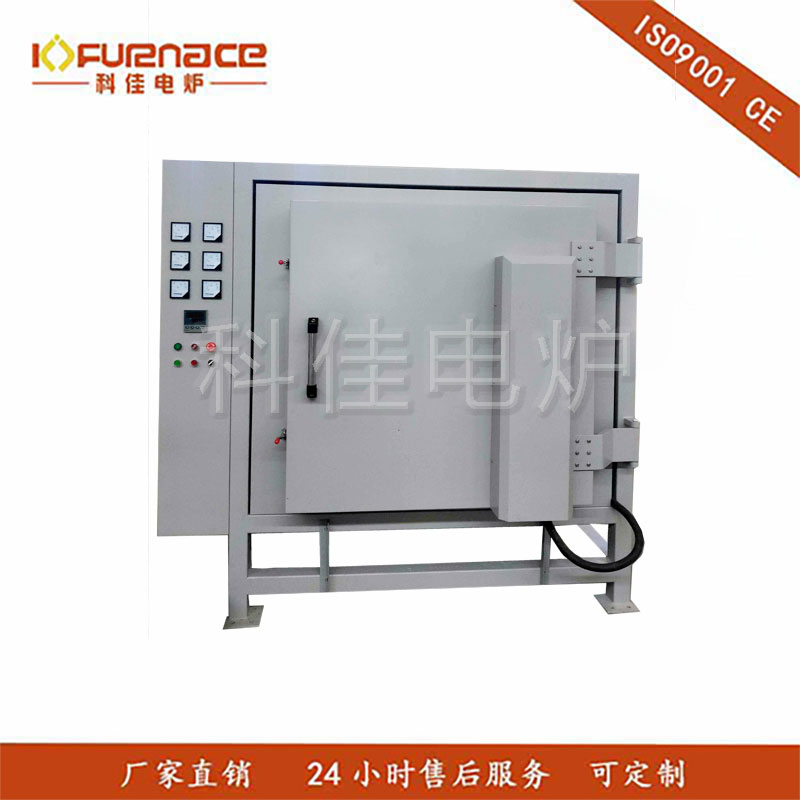

64L Muffle Furnace

Model:KJ-M1200

Description:

KJ-M1200 64L muffle furnace is mainly used for the high temperature sintering and annealing of materials.

Detailed
Brief Introduction:
KeJia KJ-M1200 64L muffle furnace is mainly used for the high temperature sintering and annealing of materials.

The main features are as below:
1. High uniform temperature.
2. Easy to operate.
3. Over temperature protection and alarm

Technical Parameter:
Chamber Structure Side Door
Display LED
Max. Temperature 1200℃ for short time
Continuous working Temperature ≤1100℃
Heating Rate Suggestion 0~10℃/min (Max. 20℃/min)
Inside Chamber Size 400×400×400mm (64L)
Heating Element Resistance Wire with Mo
Thermocouple K Type
Max. Power 16 KW
Working Voltage AC380V three phases, 50 Hz (or according to your requirement)
Temperature Control PID automatic control via SCR power control
Heating Curves 30 steps programmable
Chamber Material Alumina Fiber
Warranty One year limited warranty (Consumable parts such as heating elements are not covered by the warranty)
Standard Accessories Crucible tong x 1 pair
Protective glove x 1 pair
